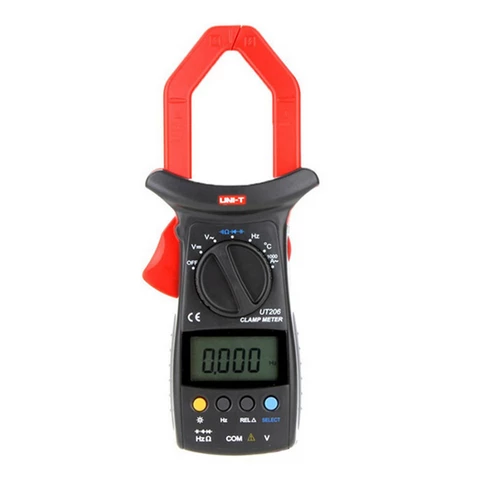

UNI-T UT206 is a low-power, stable, safe and reliable 4000-count AC digital clamp meter. The full range overload protection circuit and unique design make it a perfect choice. This smart clamp is an auto-range, diode, continuity buzzer, full icon display, jaw opening light and much more features that provide you long-lasting use of this device. This electrical clamp meter is now available in Pakistan UT206A is a professional 1000A AC digital clamp meter with 40mm jaw.
Features Of AC/DC Voltage AC Amp Ohm Calmp Tester Meter UNI-T UT-206:
- Auto Ranging
- Diode
- Continuity Buzzer
- Relative Mode
- Data Hold
- Display Backlight
- Full Icon Display
- Sleep Mode
- Jaw Opening Light
- Max. Jaw Size: 40mm
- Low Battery Display
- Input Impedance for DC Voltage Measurement: Around 10MW
- Max. Display: 3999
Specifications Of UNI-T UT206 Clamp Meter With Temperature LCD Backlight:
- DC voltage: 400mV / 4 V / 40 V / 400 V / 600 V DC voltage accuracy: ±(0.8%+1) AC voltage: 4 V / 40 V / 400 V / 600 V AC voltage accuracy: ±(1.2% + 5)
- Alternating current: 400A / 1000A
- Alternating current accuracy: ±(2% + 5)
- Resistance: 400Omega/ 4 KOmega/ 40 K /Omega/ 400 KOmega/ 4 MOmega/ 40 MOmega
- Resistance accuracy: ±(1% + 2)
- Capacitance: 40nF / 400nF / 4muF / 40MuF / 200MuF
- Capacitance accuracy: ±(3% + 5)
- Frequency: 10Hz ~ 10 MHz
- Frequency accuracy: ±(0.1% + 3)
- Temperature (C): - 40C ~ 1000C
- Temperature (C) accuracy: ±(1% + 3)
- Net weight of the item: 530g Product
- Size: 260x104x52mm
- Power: 9 V battery (6F22) (Not included in the package)
- LCD size: 52 * 27mm Product
- Colour: Red and grey
Package Includes:
- 1 x UNI-T UT206 Digital Clamp Multimeter
- 1 x Point Contact Temperature Probe
- 2 x Test Clips
- 2 x Test Leads
- 1 x English Manual
- 1 x Tool Box
