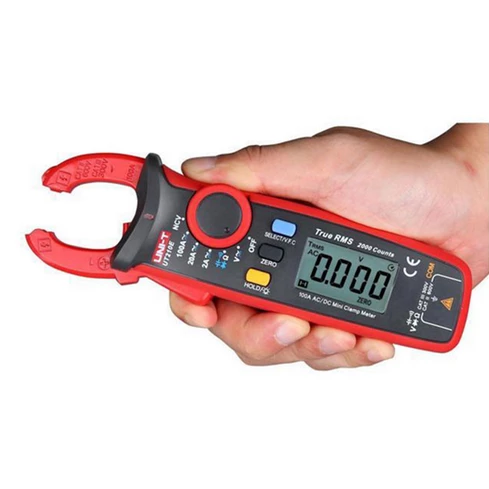

UT210 series mini clamp meters are provided with the features of high reliability, security, auto rang, and small-size. UNI-T UT-210E tong tester can test the small current signal precisely. UT 210E multimeter clamp meter, the chip itself has a VFC start-up model, and there is a specific filter circuit inside, which can filter the high-frequency interference signal and ensure the accuracy of the measurement. This small clamp meter can be applied in the situation such as variable frequency voltage and current with VFC.
Features Of AC/DC Voltage Ohm Capacitance Clamp Multimeter UNI-T UT210E:
- Ultra-portable tools for advance electricians
- 100A AC and DC current measurement with 1mA resolution
- True RMS response for AC current
- V.F.C function for measuring the signal at variable frequency
- 600V AC and DC voltage measurement
- Resistance, diode, continuity and capacitance functions
- Non-contact voltage detection with LED indication
- Display backlight
- Data HOLD, MAX, MIN, MAX-MIN, and ZERO model
Specifications Of UNI-T UT-210E TRUE RMS Digital Clamp Meter:
- Alternate Current: 2A/20A/100A
- Alternative Current Accuracy: ±(2.5%+5)
- Direct Current: 2A/20A/100A
- Direct Current Accuracy: ±(2.5%+3)
- Alternate Voltage: 2V/20V/200V/600V
- Alternative Voltage Accuracy: ±(1%+3)
- Direct Voltage Accuracy: ±(0.7%+3)
- Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
- Resistance Accuracy: ±(1%+2)
- Capacity: 2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF
- Capacity Accuracy: ±(4%+5)
- Display Count: 2000
- Auto Range: Yes
- Jaw Opening: 17mm
- TRMS: Yes
- Diode Test: Yes
- NCV: Yes
- Data Hold: Yes
- MAX/MIN mode: Yes
- Zero Modes: Yes
- Display Backlight: Yes
- Auto Power Off: Yes
- Continuity Buzzer: Yes
- Low Battery Indication: Yes
- Input Protection: Yes
- Input Impedance DCV: 10MΩ+
- Power: 2x1,5V battery AAA
- Weight: 170g
- Size: 175x60x33mm
- LCD Size: 39x26mm
Package Includes:
- 1 x Digital Mini Clamp Meter UNI-T UT210E
- 2 x Test Leads
- 1 x English Manual
