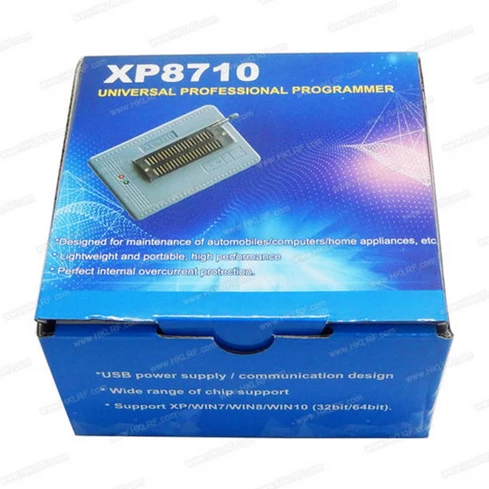

XP8710 Universal Professional Programmer with Over Current Protection
XP8710 Universal Professional Programmer with Over Current Protection
XP8710 Universal Professional Programmer with Over Current Protection
XP8710 Universal Professional Programmer with Over Current Protection
Programmers

XP8710 Universal Professional Programmer with Over Current Protection

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TMD1,Th6,KRT

Ask Price
Quantity
Add to cart

XP8710 Iniversal Professional Programmer with Over Current Protection can actually program more than 14100+ chips (as has been tested earlier by third party).

Overview:

Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code - runs faster, , it can automatically identify the operating system to install and run under the following OS

Operating systerms supported/ auto-detected:

  1. Win 2000
  2. Win XP
  3. Win 2003
  4. Win 2008
  5. Win VISTA
  6. Win 7
  7. Win 8
  8. Win 10 (32Bit/64Bit).

Features:

The programming speed is greatly improved . It is suitable for small batch production and supports 4 programmers for one computer.

A wide range of chip support, the initial version supports the chip 15000+, supports a variety of:

  1. 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips
  2. microcontroller 51 series
  3. ATMEL AVR ATMEGA AT90 series
  4. MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller
  5. GAL programmable logic device programming
  6. SRAM test
  7. 54/74 and CMOS4000 integrated circuit
  8. integrated functional test
  9. 25 series Nor Flash capacity support to 128Mbits

Note: 32MB or larger capacity flash chip cannot be programmed by general programmers because of programming speed, while the XP8710 programmer can widely support 16MB Serial and parallel series of chips to 48PIN. It provides with the remarkable quality that is distinct from other common programmer.

Unique ultra-low power/ power requirements:

The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the programmer can supply the high VCC VPP programming electric current. Programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that is impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the programmer after such long continuous work.

Portable performance:

Programmable programming power supply: VPP and VCC programming voltages are independently program-controlled: programmable VCC is from 3.3V to 6.5V; VPP is from 3.3V to 21V. The fluctuation of power supply is minor because of the multi-stage LC filter (inductor capacitor).

Best overvoltage, overcurrent protection

VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically power supply cut off. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. In this programming case, it can also stop VPP high voltage from coming back to the internal of the programmer and damaging the device. This really makes sure that the programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.

This programmer will cut off the programming power supply VPP and VCC within 100us (micro seconds) and send the message to the application program when there is short circuit. The programmer and PC won't be reset when there is short circuit because of the multilevel overcurrent protection.

Chip serial number secondary development functions:

This programmer is manufactured using a variety of commonly used automatic numbering function. And can use a custom algorithm to achieve any sequence number through DLL dynamic library. This feature allows you to produce a unique identification information for each chip in mass production. The logo can also be encrypted with a custom algorithm to more effectively protect your product's rights.

Universal serial programming interface ICSP (to support high-voltage parallel programming).

Note: ICSP now supports ATMEL89S51,52, AVR ATMEGAxxx Full Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx full range chips for in-circuit serial programming.

Package includes:

  • 5-pin jack cable
  • Programmer device
  • Connecting cable
