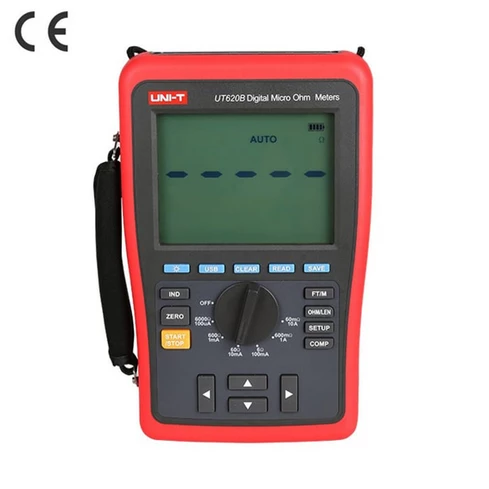

Digital Micro Ohm Meter UNI T UT620B

UNI-T UT620B series is used to measure DC low resistance through the 4-wire method. Some of Motor Resistance Winding Tester features are Comparison function to determine if the device is in good condition, unknown wire length calculation (FT/M); two-way data transmission by USB interface; built-in rechargeable lithium battery. Handheld Micro Ohm tester can be used in narrow space for on-site troubleshooting, such as metal coating resistance/motor and small transformer winding resistance measurements, earth system joints/welding points/power distribution cabinet bus and lead connection inspections and more.

Features Of Digital Micro Ohm Meter UT620B:

• Improved measurement method which improves accuracy by counter-balancing contact resistance of leads
• Comparison measurement with upper and lower limits
• Wire length measurement (m/ft)
• Built-in Lithium battery
• 1000-group data storage
• Data transmission between USB and PC
• Data hold
• LCD backlight
• Zeroing function, relative mode
• IND resistance measurement mode

Specifications Of UNI-T UT620B Handled Micro Ohm Tester:

1. Model: UT620B
2. Power: Lithium Battery 7.4V 4000mAh, Rechargeable
3. Product Color: Red and Grey
4. Display: 116mm × 87.5mm
5. Item size: 268mm × 168mm × 60mm
6. Display Count: 60000
7. Minimum Resolution: 1uΩ
8. Resistance (R):
   • 60.000mΩ/10A ±(0.25%+25dgts
   • 600.00mΩ/1A ±(0.25%+20dgts)
   • 6.0000Ω/100mA ±(0.25%+20dgts)
   • 60.000Ω/10mA ±(0.25%+20dgts)
   • 600.00Ω/1mA ±(0.25%+25dgts)
   • 6.0000kΩ/100uA ±(0.25%+30dgts)

Package Include:

• 1x Digital Micro Ohm Meter UT620B
