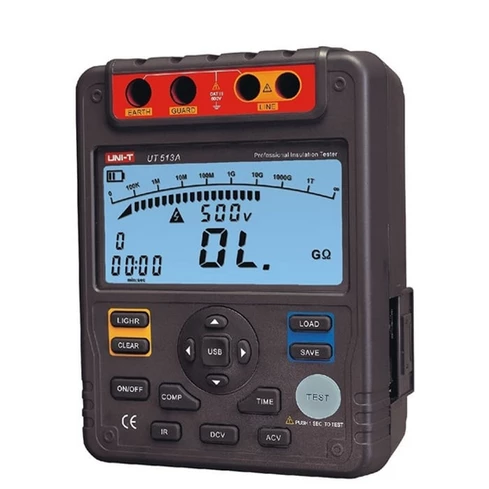

UNI T Insulation Resistance Tester UT513A

UNI T Insulation Resistance Tester UT513A is a kind of intelligent insulation tester. The UT513A insulation meter circuit design takes microcomputer technology design as the core and combines the large scale integrated circuit with digit circuit. This multimeter is equipped with strong measuring software and data processing software. This megohmmeter is applied to the parameter measurement of insulation resistance, voltage and low resistance. This voltmeter has stable performance and simple operation. It is applicable to on-site measurement and repair of the electrical equipment and charging line. This digital insulation tester is the ideal tool for maintaining electrical equipment. It is also used for smelting, communication, manufacture, fossil oil, national defence, electricity, chemical industry and circuit.

Features Of Digital Insulation Resistance Tester UNI-T UT513A:

1. Large 9999 display with 30-segment analogue bar graph
2. PI/DAR measurements; power adapter
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Backlight; auto power off
6. 18-group data storage
7. Auto current discharge and high-voltage output alarm
8. Timer measurement mode, auto measure within 15 minutes
9. Low battery and over range indications
10. EN61557-1:2007, EN61557-2:2007

Specifications Of UNI-T UT513A High Voltage Insulation Tester:

1. Insulation Resistance: 0.5MOhm ~1000GOhm
2. Insulation Resistance Best Accuracy: +/- (3%+5)
3. Testing Voltage: 500V / 1000V/ 2500V/5000V
4. Testing Voltage Best Accuracy: 0 ~ 20%
5. DC Voltage: 600V
6. DC Voltage Best Accuracy: +/- (2%+5)
7. AC Voltage: 600V
8. AC Voltage Best Accuracy: +/- (2%+5)
9. Auto Ranging: Yes
10. Short Circuit Current: < 1.8mA
11. Data Logging: 18
12. Sleep Mode: Yes
13. Polarization Index (PI): Yes
14. Dielectric Absorption (DAR): Yes
15. Timer Around: 15 minutes
16. Compare Measurement: Yes
17. Battery Display: Yes
18. White Display Backlight: Yes
19. Over Range and High: Yes
20. Voltage Warning: Yes
21. USB Interface: Yes
22. Max. Display: 9999 (123 x 58mm)
23. Analogue Bar Graph: Yes
24. Power: 1.5V Alkaline Battery(LR14)×8
25. Product Size: 202×155×94 mm
26. Product weight: 2 kg

Package Includes:

• 1 x Insulation resistance tester UNI-T UT513A
• 2 x Test leads with alligator clips
• 1 x Two plugs test lead
• 1 x USB cable
• 1 x Power adaptor
• 1 x Software CD
• 1 x User manual
