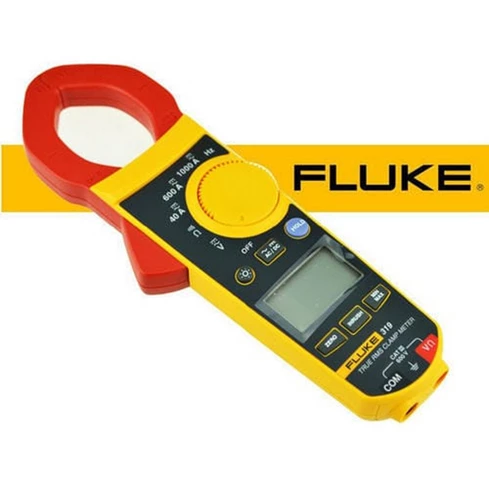

The Fluke 319 True RMS AC-DC digital clamp meter has an ergonomic design and its streamlined shape makes it easier to hold in your hand. This slim, rugged digital clamp ammeters is an ideal tool for measure1000A current measurement and use it in narrow spaces. The Fluke319 has an accurate 40 A small range. In addition to a range of test functions, The FLUKE 319 digital clamp ammeter also features Inrush current and frequency function for easy measurement of motors and lighting equipment.
Features:
- Unique 40A small-range, high-accuracy current test - 0.01A high resolution, 1.6% high precision measurement
- The jaws are slim and lightweight, making them more suitable for use in confined spaces.
- Large backlit display for easy reading in dark environments
- Inrush current function (319) to measure the starting current of devices such as motors and lighting equipment.
- Current frequency measurement
- Digital clamp meter accuracy is higher than 0.01A and 0.1V
- 1000A AC/DC Current Measurement (319)
- 600V AC / DC voltage measurement
- 4000Ω resistance measurement
- Digital clamp meter sensitive continuity buzzer measurement
- Auto-shutdown function maximizes battery life so that the meter can work when needed
- Data Hold function to keep measurement results on the screen
Specifications:
- Display: 6000 Resolution
- Battery: 3xAAA IEC LR03
- Jaw opening: 1.45 in (37 mm)
- AC Current:
- Range: 40.00 A, 600.0 A, 1000 A
- Accuracy:
- 1.6% ± 6 (50-60 Hz) {40 A}
- 2.5% ± 8 (60-500 Hz) {40 A}
- 1.5% ± 5 (50-60 Hz) {600 A}
- 2.5% ± 5 digit (60-500 Hz) {600/1000 A}
- Resolution: 0.01 A, 0.1 A, 1 A
- DC Current:
- Range: 40.00 A, 600.0 A, 1000A
- Accuracy: 1.6% ± 6 (40 A), 1.5% ± 5 digit (600/1000 A)
- Resolution: 0.01 A, 0.1 A, 1A
- AC Voltage:
- Range: 600.0 V
- Accuracy: 1.5% ± 5 (20-500Hz)
- Resolution: 0.1v
- DC Voltage:
- Range: 600V
- Accuracy: 1% ± 4
- Resolution: 0.1V
- Resistance:
- Range: 400.0 Ω, 4000 Ω
- Accuracy: 1% ± 5
- Resolution: 0.1 Ω, 1 Ω
- Continuity: ≤ 30 Ω
- Operating temperature: 14°F to 122°F (-10 °C to 50 °C)
- Storage temperature: -40 °F to 140 °F (-40 °C to 60 °C)
- Dimension (LXWXH): 6.39 in x 2.29 in x 1.20 in(162.4 mm x 58.25 mm x 30.5 mm)
Package Include:
- Fluke 319 meter
- Test leads
