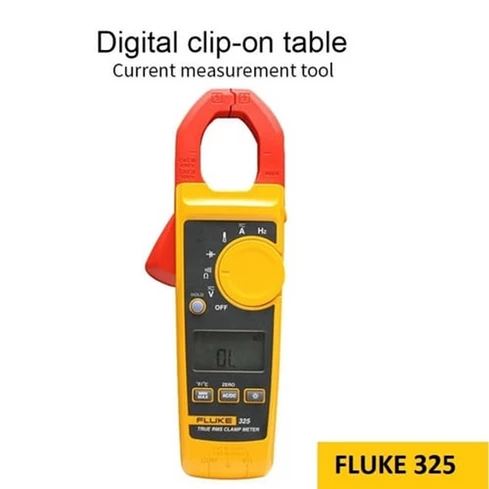

FLUKE 325 True RMS 400A Digital Clamp Meter AC DC Voltage And Current Tester

The FULKE 325 True RMS Clamp Meter provides large AC/DC characteristics in a small form factor. The FLUKE 325 clamp table is the top of the 320 Series clamp table. Designed to perform in harsh environments and provide noise-free, reliable results, you can trust 325 to help you confidently diagnose electrical problems. It features true RMS measurements, optimized ergonomics, a large backlit display, and a rugged compact design to measure currents up to 400A in tight cable compartments. You can also use it to measure temperature, capacitance, AC/DC current, and frequency. Commercial and residential electricians use 325 to verify load current, AC voltage, and continuity of circuits, switches, fuses, and contacts. Frequency measurements allow inspection of portable generators; DC current test battery backup and solar storage devices.

Feature:

• Robust and reliable true RMS clamp with DC current and frequency measurement.
• AC and DC currents are measured to 400A.
• Measure the AC voltage and DC voltage to 600 volts.
• Provides accurate RMS AC voltage and current for accurate measurement of nonlinear signals.
• The resistance of 40 KQ was measured by continuous detection.
• The frequency is measured at 500 Hz.

Specification:

1. AC current:
   • Accuracy 2% ± 5 digits (45 to 65Hz), 2.5% ± 5 digits (65Hz to 400Hz
   • 40.0A / 400.0A
2. DC current:
   • Accuracy 2% ± 5 digits
   • 40.0A / 400.0A
3. AC voltage:
   • 600.0V
   • accuracy 1.5% ± 5 digits
4. DC voltage:
   • accuracy 1.0% ± 5 digits
   • 600.0V
5. Resistance:
   • Accuracy 1.0% ± 5 digits
   • 400.0Ω / 4000Ω / 40.0kΩ
6. Continuity: ≤30Ω
7. Capacitance: 0 to 100.0uf / 100uf to 1000uf
8. Frequency: 5.0Hz to 500.0Hz
9. AC response:True-RMS
10. Backlight:Yes
11. Data retention:yes
12. Contact temperature:-10C to 400C
13. Min / max:yes
14. Max Wire Diameter:30mm (600MCM)
15. Size:207x75x34mm
16. Classification rating:CAT III 600V, CAT IV 300V
17. Power: 2xAAA battery (not included)

Package Include:

• fluke 325 clamp
• Test leads
• Soft case
• User’s manual
