MCH-305D-II Adjustable DC Power Supply Adjustable Dual Power Supply, Cheap power impedance, Buy Quality display clock directly from China display pole Suppliers:

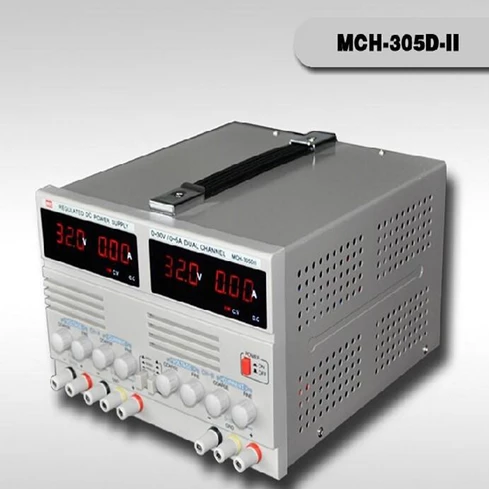

Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)
.
Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)
.
- Package Size:20.0 * 43.0 * 20.0 ( cm )
- Gross Weight/Package:10.0 ( kg )
Item specifics
- Name: OEM
- Model Number:MCH-305D-II
- Current Type:DC
- Phase:dual
- Usage:adjustable DC power supply
Adjustable DC power supply multifunction digital display adjustable dual power MCH-305D-II (30V / 5A)
- GPS-3030DD linear DC power supply 0-30V 0-3A Single Output
- Constant voltage operation
- Rate of change rate of change of power <0.01% + 3mV
- Load regulation load rate of change <0.01% + 3mV (rated current <3A)
- <0.01% + 5mV (rated current> 3A)
- Ripple and noise noise <0.5mVrms 5Hz ~ 1MHz (rated current <3A)
- <1mVrms 5Hz ~ 1MHz (rated current> 3A)
- Transient response time <100S (50% change in the load, the minimum load is 0.5A)
- Temperature coefficient <300ppm / ° C
- Output range is continuously adjustable from 0 to rated voltage
- Constant current operation
- Adjusted rate power adjustment rate <0.2% + 3mA
- Load Regulation <0.2% + 3mA
- Ripple current <3mArms
- Output Range 0 to rating current continuously adjustable (Hi / Lo range switchable)
- Header
- Digital 3 1/2 digit 0.39 "LED display
- Accuracy + (0.5% of reading + 2 digits)
- Insulation
- Chassis and Terminal 20M or above (DC 500V)
- Chassis and power lines 30M or above (DC 500V)
- Use the power
- AC 100V / 120V / 220V / 240V + 10%, 50 / 60Hz
- Accessories
- Power cord x 1,
- Operating Manual x 1,
- Test line GTL-105 x 1 (<3A) or GTL-104 x 1 (<10A)
