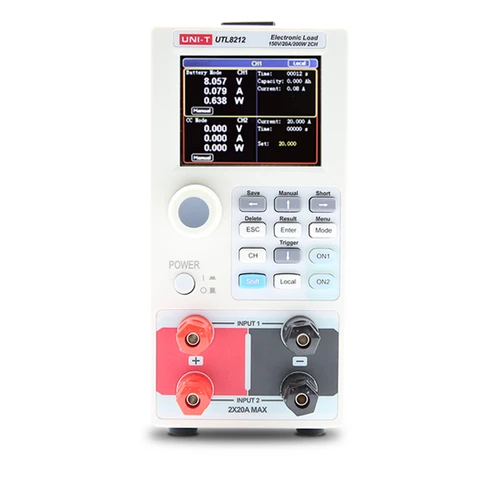

UNI-T UTL8212 High-Precision Compact DC Electronic Load Tester Power Supply Current Test

UNI-T UTL8212 High-Precision Compact DC Electronic Load Tester Power Supply Current Test

Condition: New

Availability: In Stock

Advance Payment Only

The UTL8200 Series is designed for users requiring a DC load with a compact form factor which is widely used in basic applications such as product production line and maintenance. Small size, easy operation, rich testing functions, and modes, support for dual-channel independent testing, the standard RS-232 interfaces for remote communication to meet your diversified test requirements, and easy to connect seamlessly with automatic production line and automatic test system (ATS). With a wide range of power measurement, voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA. The UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.

SKU:TTH_TCBOX5

Ask Price

Quantity

Add to cart

Description
Reviews (0)

Features of UNI-T UTL8212 / UTL8211 DC Electronic Load Tester:

2.8 inch large screen LCD display
Test resolution: 1mV/1mA
Voltage test range: 0~150V
Current test range: 0~40A (UTL8211), 0~20A (UTL8212)
Power test range: 0~400W (UTL8211), 0~200W (UTL8212)
Built-in 7 test modes
7 working modes: CC/CV/CR/CP/dynamic/list/battery
Independent short circuit test function
Multi-mode battery discharge test
Multiple protection functions. Various protections such as over-voltage, low voltage, over current, over power, overheat, anti-reverse connection, etc.

RS-232C communication interface, intelligent temperature control fan, power-off memory function:

Standard RS-232C interface: supporting PC software to realize remote operation.
Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating.
Power-off memory: power on again to restore the last saved setting value.

MODEL	UTL8211	UTL8212
VOLTAGE	150V	150V
CURRENT	40A	20A
TOTAL POWER	400W	200W*2CH
RESOLUTION	1mV/1mA	1mV/1mA
MAX. DYNAMIC FREQUENCY	10kHz	10kHz
CURRENT SLEW RATE	0.15A/μs	0.15A/μs
SIZE	300mm x 88mm x 174mm	300mm x 88mm x 174mm
CONNECTIVITY	RS-232	RS-232
NO OF CHANNELS	Single Channel	Dual Channel
DATA STORAGE	Memory Storage 60 Groups	Memory Storage 60 Groups
