A 24v switched-mode power supply (SMPS) is an electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. The latest international Switching DC Power Supply programs High performance, low power consumption, low-cost Built-in overload, short circuit protection circuit Switching Transformer 15A design according to the characteristics of the LED, Built-in LED power indicator, 100% full of aging test, the quality is more secure.
Features Of 24V 15A Switching Transformer Dc Power Supply For Landscape Lights:
- Good anti-interference performance and high reliability.
- Low operating temperature and long service life.
- Wide input voltage range, (100-240V) in line with global usage standards.
- AC input range selectable by switch
- Protections: Short circuit/Overload/Over voltage/Over temp
- Forced air cooling by built-in DC fan
- Built-in cooling Fan ON-OFF control
- 100% full load burn-in test
- Fixed switching frequency at 25KHz

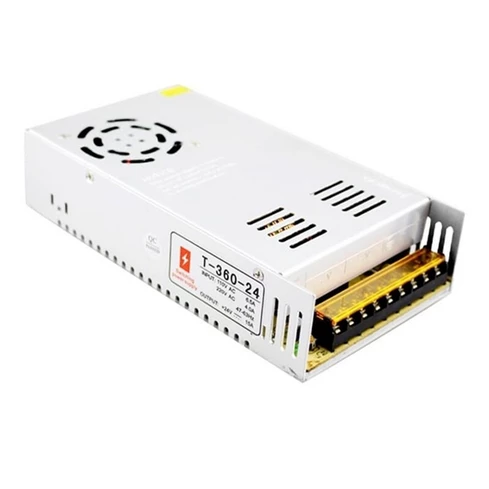

Specifications Of 24V 360W Switched Mode Transformer SMPS For LED lighting:
- DC Voltage: 24V
- Rated Current: 15A
- Current Range: 0-15.5A
- Rated Power: 360W
- Ripple & Noise (maximun): 150mV
- Voltage Tolerance: +/- 2.0%
- Line Regulation: +/- 0.5%
- Load Regulation: +/- 0.5%
- Setup, Rise, Hold Up Time: 200ms, 100ms, 50ms, at full load
- Voltage Range: 180-264V AC by
- Frequency Range: 47-63HZ
- Efficiency: 85%
- Inrush Current: 13A/115V 25A/230V
- Leakage Current: <1mA/240VAC
- Working Temp. : -20℃~60℃
- Working Humidity: 20%-90% RH
Applications Of LED SMPS 24v 360w :
- LED Lighting
- RGB LED Strip
- SMD
- CCTV Cameras
- Street Light
- Lawn Lamp
- Advertising Article Screen
Note:
- The power supply is 100% full, but some power is lost when wiring. Therefore, it is recommended to use 80-85% of the power.
- The input voltage should be within the specified working range.
- It is strictly forbidden to use in a high-temperature environment, the power supply should have good heat dissipation space and environment.
- Do not install the power supply on flammable materials, keep away from gas stations or places where smoking is prohibited.
Package Include:
- 1x Switching Power Supply SMPS 24V 360W 15A
