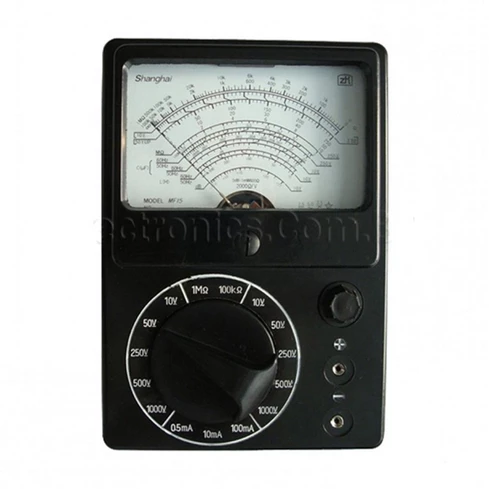

MF-15 Analog Multimeter Digital Multimeter Digital Avo Meter Universal Meter Avometer

Model MF-15 Multimeter is a rectifier type moving coil instrument designed for radeio servicing and electrical measurements of D.C. current and voltage, A.C. voltage. Output lever,capacitance and inductance.

Analog Multimeter MODEL: MF-15 Basic Function Range Accuracy DC Voltage 0～10V～50V～250V～500V～1000V 2.50% AC Voltage 0～10V～50V～250V～500V～1000V 5% DC Current 0～500μA～10mA～500mA AC Current 　 D.C. Resistance 0 ~ 100kΩ; 0 ~ 1MΩ 2.5% of scale length Capacitance 0 ~ 0.03 ~ 0.6μF Frequency 45~1000Hz Temperature 0°C~+50°C Inductance Range 10~1000H Relative humidity <85%RH Output level -10~+22~+36~=50~+56~+62dB Standard Features Body Color Black Size 92×43×132mm Working condition:

1. Ambient temperature 0°C~+50°C
2. Relative humidity<85%
3. Frequency range 45~1000Hz
4. Dimensions:92×43×132mm

Package Include:

1. 1xMeter
2. 2xProbes
3. 1xMannual
