Functions:
- Battery powered
- rotary knob operation
- analog display.
- Widely use in factory
- school lab
- home hobby
- machine repairing, etc.
- You can use it to measure AC/DC voltage
- DC current
- resistance
- battery voltage.
Specification:
Product Name Analog Multimeter
Powered By 1 x 1.5V RL7, 1 x 9V RL190(Not Included Here)
DC Voltage 0.25V, 1V, 2.5V, 10V, 50V, 250V, 500V, 1000V
AC Voltage 10V, 50V, 250V, 500V, 1000V, 2500V
DC Current 0.05mA, .5mA, 5mA, 50mA, 500mA
Resistance x1, x10, x100, x1k, x10k Ohm
Battery Test 1.2V, 1.5V, 2V, 3V, 3.6V
Audio Level 14dB, 22dB, 28dB
Resistance Box 0.5, 5, 50, 500, 5K, 20K, 50K, 200K, 1M, 2.25M, 4.5M, 9M, 22.5M
Capacitance Mesure Cx1, Cx10, Cx100, Cx1k, Cx10k (C uf)
Main Color Black
External Mateiral Plastic
Size 18.7 x 11.8 x 4.7cm/7.4" x 4.6" x 1.9" (L*W*T)
Net Weight 323g
Package Content 1 x Analog Multimeter
Package Include:

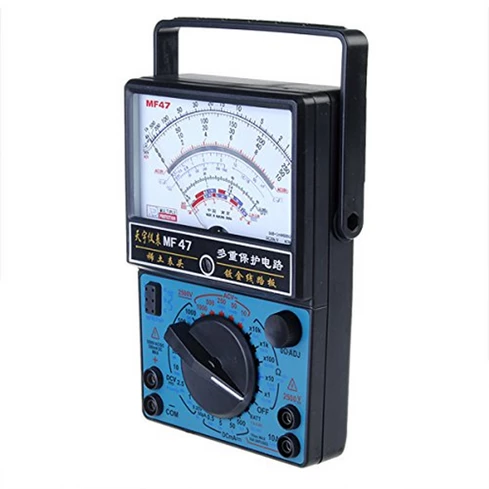

1xMF-47 Analog Multi Meters Volt Meter Ammeter Ohm Meter Battery Tester
