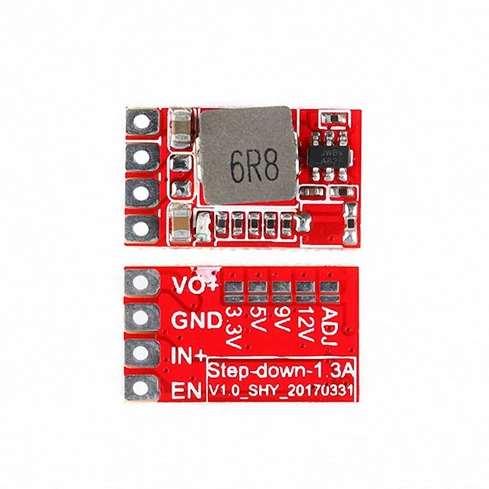

Overview of Mini DC Buck Converter Step Down Module:
Mini DC-DC Buck Converter Step Down Module 1.3A Adjustable Step-Down Conversion 12V 24V to 5V 3.3V 9V..The default output voltage of 5V, if you need other output voltage, with a knife cut off the connection in the blue circle, and then the required voltage location with solder to the pad can be connected.
Specifications of Mini DC Buck Converter Step Down Module:
- Input Voltage: 12V to 24V
- Output Voltage: 3.3V,5V,9V,12V,Adjustable Voltage
- Output Current: 1.3A
Features of Mini DC Buck Converter Step Down Module :
- Using a new original chip, fixed ceramic capacitors, stable performance
- A large amount of output current 1.3A, 1A operation within a long time, sufficient margin
- Non-isolated DC synchronous rectification, circuit conversion efficiency up to 94%
- using one-piece molded inductor, lower than the ordinary shield inductance heat
- Output integrated optional output voltage, the spot welding directly on the board can be, versatility is very strong
- Output with LED lights, easy to visually indicate the voltage output
- With the enable port, the default mode of operation, low off, to bring convenience to control
input and output are used 2.54mm pitch pinhole, with 7805 pin spacing, easy to use
With the enable port, the default mode of operation, low off, to bring convenience to control
Package Includes:
- 1 x Mini DC Buck Converter Step Down Module 12V 24V to 5V 3.3V 9V
