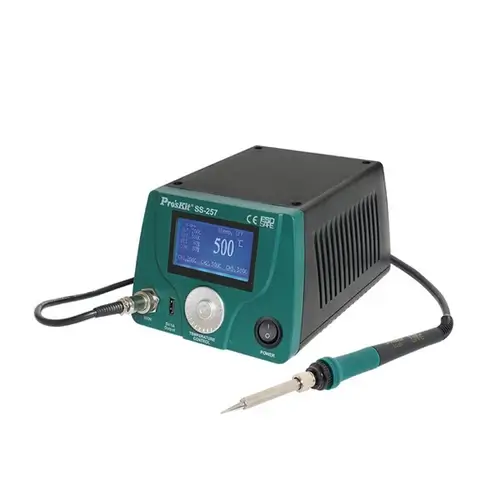

Pro'sKit SS-257H LCD Digital Soldering Station with Intelligent Temperature controller for your precise soldering applications. Its designed by a Proskit company which is a best-known instrument and tools manufacturing company.
Features Of SS-257 75W Soldering Station:
- Microprocessor controlled features the best performance, accurately temperature control.
- High-quality heating element, recovery fast
- It comes with a high-end quad-wire heating element for fast heat recovery.
- Large LCD display with shuffle knob design
- Large screen with backlight, LCD contrast and brightness are adjustable.
- Designed with function manual and shuffle knob for easy setting, more convenient and user friendly.
- 3data memories
- Store and recall frequently used temperature values.
- USB port output
- Built-in DC 5V/1A USB port for power supply.
- Smart functions
- Auto sleep and wake up function, auto power-off, system lock, tip calibration, and low consumption.
Technical Specifications:
Model No. SS-257H
Input voltage 220~240V 50Hz
Control system Microprocessor-controlled
Power consumption 75W
Display LCD 74x40mm, 256x128 dot. backlight
Temperature range 30~500°C±10°C(86~932°F±50°F)
Temperature calibration ±0~200°C(32~392°F)
Temperature stability ±2oC/±36°F (no load)
Heating element High end quad-wire Heater
Plug H
Sleep mode OFF, 1~360min. adjustment
Temperature of sleep mode 30~400°C/86~752°F
Auto power off OFF/1~360min adjustable
USB port output DC 5V/1A
Memory 3 sets
Tip-to-Ground resistance /
potential ≤ 2 Ω / ≤ 2 mV
Size 185×120×94 mm
Weight 2.36 Kg
