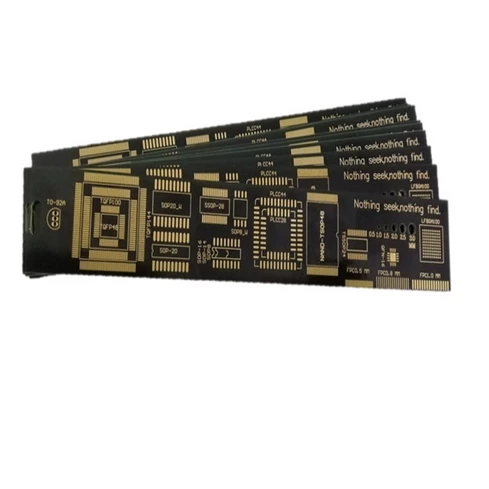

Multi functional PCB Ruler EDA Measuring Tool in Pakistan

Multifunctional PCB Ruler EDA Measuring Tool: PCB refers to the printed circuit board, which is the supporting body of the electronic components. Electronics enthusiasts in the design process need a measurement tool that can be a collection of all necessary functions. Multifunctional PCB ruler, in addition to the basic functions of the measured in millimeter and inch size. It also integrates relevant information for PCB design, such as the amount of angle instrument, device, IC pin spacing control table, resistors, and capacitors SMD package, commonly used a reference of hole diameter, width size reference.

Features:

• measuring a length of 20 cm
• measuring a length of 7.8 inches
• commonly used IC package: TQF48, TQFP100, TQFP144, SOP20-W, SOP-20, SSOP-28,NAND-TSOP48
• the common hole diameter reference size (MIL)
• for hanging a slot

Specifications:

• size: 208mm x30mm
• reversible protractor, high precision, better measurement of hollowed out, filling the humanization design.

Package Includes:

1 x Multifunctional PCB Ruler EDA Measuring Tool

• SKU: TTH_B308,IMP10,Th2,KRT
• /
• Category: Tools
• /
• Tags: Multi functional PCB Ruler EDA Measuring Tool in Pakistan
