SKU:TTH_TRU_TT_SOLB

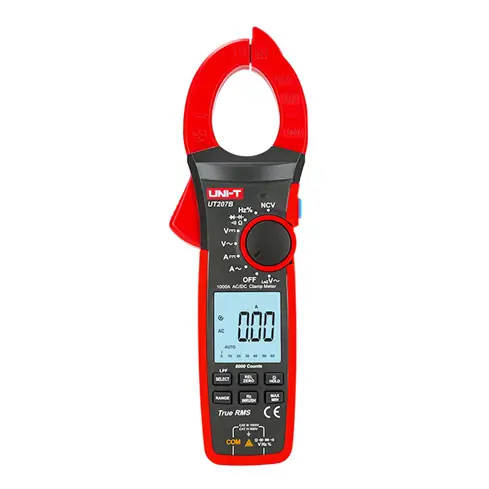

UT207B True RMS digital clamp meter is used to measure AC/DC 1000A/1000V voltage, large LCD, auto range, autoscale memory, and NCV functions. UNI-T UT207B come with LoZ mode for eliminating ‘ghost’ voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current 1000A mode for capturing transient current. Ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment.
| Specifications | Range | UT207B |
| AC current (A) | 1000A | ±(2%+5) |
| DC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 40Hz~400Hz | |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC voltage (V) | 6V | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | |
| DC voltage (V) | 600mV | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | |
| Low pas ?lter (LPF ACV) | 600V/1000V | ±(2%+5) |
| AC voltage frequency response | 40Hz~400Hz | |
| LoZ ACV | 600V/1000V | ±(2%+5) |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Jaw opening | 42mm | |
| Current frequency | 50Hz~60Hz | |
| High voltage frequency | 40Hz~400Hz | |
| Analog bar | 31 | |
| Auto power o? | √ | |
| Continuity test | √ | |
| Auto/Manual range | √ | |
| Low battery indication | √ | |
| Diode test | √ | |
| Relative mode/Data hold | √ | |
| MAX/MIN | √ | |
| Function selection | √ | |
| Flashlight | √ | |
| Wake-up function | √ | |
| Auto power o? current: <50μA | √ | |
| Zero mode | √ | |
| Input impedance (ACV/DCV) | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 43mm x 45mm | |
| Product color | Red and grey | |
| Product net weight | 420g | |
| Product size | 272mm x 81mm x 43.5mm | |
| Standard accessories | Test leads, batteries | |
