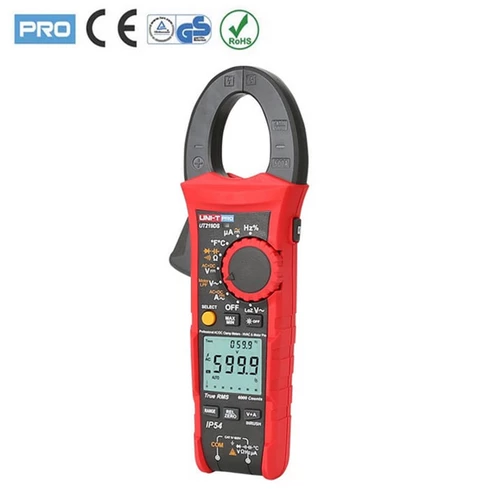

UT219 series is 600A true RMS professional clamp meter with a CAT IV 600V rating from UNI-T. Handheld Digital Clamp Tester UT219DS is industrially designed with an IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians. .UT219Ds True RMS Tong tester is used to measure AC/DC Current, Voltage, Resistance, Capacitance, Temperature, and Frequency.UT219DS Portable Clamp Multimeter is used to do a 3-phase motor sequence test and a low pass filter test.UNI-T Digital Ampere Meter has a large 6000 count display. Auto Range Clam meter has a flame sensor which is used to measure Temperature and μA measurements.
Features Of Multi Range AC/DC Current Clamp Ampere Meter 600A UT219DS:
- LoZ input for ghost voltage measurement
- 5 times/s measurement sampling rate
- IP54 IP rating
- 2m Drop Test
- 20 times/s Analogbar sampling rate
- Flashlight and auto backlight
- 3-phase motor sequence test
- Temperature and μA measurements (flame sensor)
- Inrush current
- AC+DC voltage
- V+A dual display
Specifications Of UNI-T UT219DS Ideal Electrical Earth leakage Current Tong Tester:
- Power: 1.5V battery (R03) x 3
- LCD Display: 35mm x 31mm
- Dimension: 234.6mm x 82mm x 47mm
- Color: Red and Grey
- Jaw Capacity: 33mm
- Duty cycle: 0.1%~99.9%
- DC voltage:
- Range:6V/60V/600V
- Accuracy: ±(0.6%+3)
- LoZ ACV :
- Range: 600 ±(2.5%+6)
- Accuracy: ±(2.5%+6)
- AC voltage:
- Range: 6V/60V/600V
- Accuracy: ±(1%+6)
- AC current:
- Accuracy: ±(1.8%+6)
- Range: 600A
- DC current:
- Accuracy: ±(1.8%+6)
- Range: 600A
- Resistance:
- Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Accuracy: ±(1%+3)
- Capacitance:
- Range: 60nF/600nF/6uF/60uF/600uF/6000uF/60mF
- Accuracy: ±(4.0%+7)
- Frequency:
- Range: 600Hz~40MHz
- Accuracy: ±(0.1%+5)
- Temperature(°C):
- Range: -40°C ～ 1000°C
- Accuracy: ±(2%+5℃)
- Temperature(°F):
- Range: -40°F ～ 1832°F
- Accuracy: ±(2%+9℉)
Package includes:
- 1x Clamp Meter UNI T UT219M
