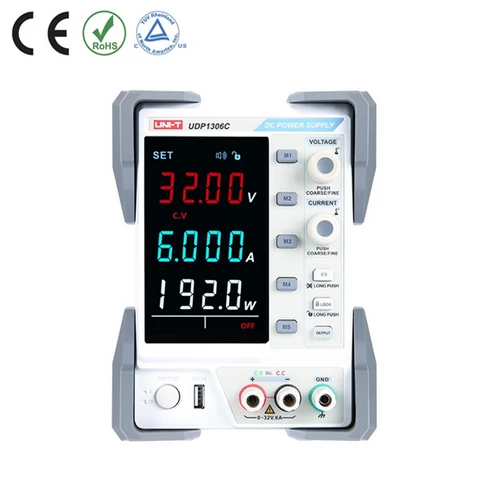

UDP1306C Industrial Linear DC Power Supply
UDP1306C Industrial Linear DC Power Supply
UDP1306C Industrial Linear DC Power Supply
UDP1306C Industrial Linear DC Power Supply
Power Supply

UDP1306C Industrial Linear DC Power Supply

Condition: New

Availability: In Stock
Advance Payment Only

The UDP1306C DC power supply has two groups of independentoutputs: the adjustable output of 32V/6A, which has the constantvoltage (CV) and constant current (CC) modes, and the fixedoutput of 5V/2A with protection features of short circuit andovervoltage.

SKU:TTH_TCBOX88

Ask Price
Quantity
Add to cart

Features of UDP1306C Industrial Linear DC Power Supply:

  • 4-digit high precision display
  • OVP OCP OTP protection
  • Output setting viewable
  • Remote control (output ON/OFF)
  • Shutdown memory/keypad lock
  • Intelligent cooling fan
  • USB charging interface
  • RS232 program-controlled communication
  • USB device communication
  • 5 sets of data storage

Technical Specifications of UDP1306C Industrial Linear DC Power Supply:

Specifications
Model UDP1306C
Output voltage (CH1/CH2) 0~32V
Output current (CH1/CH2) 0~6A
Output power 192W
Display mode 3-window, 4-digit voltage and current high precision display
Resolution Voltage 10mV
Current 1mA
Load regulation Voltage <0.01%+5mV
Current <0.1%+10mA
Power regulation Voltage <0.01%+3mV
Current <0.1%+3mA
Setting accuracy(25℃±5℃) Voltage <0.5%+20mV
Current <0.5%+10mA
Ripple and noise(20Hz~20MHz) Voltage ≤2mVrms
Current ≤3mArms
Temperature coefficient Current/Voltage: ≤300ppm/℃
Voltage rising/falling time delay ≤100ms (10% rated load)
Interfaces USB Host (5V/2A), USB Device, RS-232
General Characteristics
Power AC 100V/120V/220V/230V±10%, 50Hz/60Hz
Product net weight 7.5kg
Product size 136mm x 194mm x 327mm
Standard accessories USB communication cable, output cables, Power cord
Standard individual packing Carton box
Standard quantity per carton 1pcs
Standard carton measurement 505mm x 270mm x 335mm
Standard carton gross weight 9.6kg
