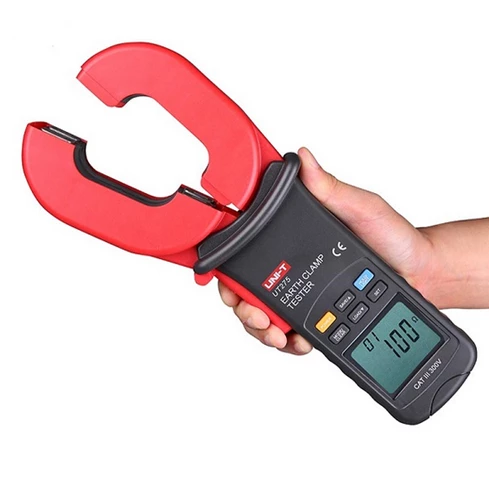

UNI T Earth Clamp Ground Tester Meter UT275 can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. This UT-275 ground tester can measure resistance from 0.01Ω with a resolution of 0.001Ω. This clamp-type earth tester can also measure leakage current up to 30A. This clamp meter has double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.
Features Of UNI-T UT275 Earth Clamp Meter:
- Earth resistance testing.
- Leakage current.
- Data hold function.
- Data record function.
- Auto power-off function.
- Automatic calibration.
- 4 digits LCD with backlight.
Specifications Of Earth Resistance Clamp Meter UNI-T UT-275:
- Earth Ground Resistance
- 0.01~0.099Ohm, ±(1%+0.01)
- 0.1~0.99Ohm, ±(1%+0.01)
- 1.0~49.9Ohm, ±(1.5%+0.1)
- 50.0~99.5Ohm, ±(2%+0.5)
- 100~199Ohm, ±(3%+1)
- 200~395Ohm, ±(10%+5)
- 400~590Ohm, ±(20%+10)
- 600~1000Ohm, ±(25%+20)
- Leakage Current
- 0.00~299mA, ±(2.5%+2mA)
- 0.30~2.99A, ±(2.5%+100mA)
- 3.00~30.0A, ±(2.5%+300mA)
- Display Count: 9999
- Auto Range: Yes
- Jaw Capacity: 28mm
- Auto Power Off: Yes
- Low Battery Indication: 5.2V
- Data Hold: Yes
- Data Logging: 30
- Data Recall: Yes
- LCD Backlight: Yes
- Auto Calibration: Yes
- Resistance Limit Alarm: Yes
- Power: 1.5V Alkaline Batteries(LR6)×4
- Product Color: Red and Grey
- LCD Size: 47mm X 28.5 mm
- Product Net Weight: 1320g
- Product Size: 293mm X 90mm X66 mm
- Datalogging: Yes
- Earth resistance clamps: Yes
- Leakage current: Yes
- Safety Rating: CAT III 300V
Package Included:
- 1 x UNI-T UT275 Clamp Earth Ground Resistance Tester
- 2 x Test Ring
- 1 x English Manual
- 1 x Tool Box
