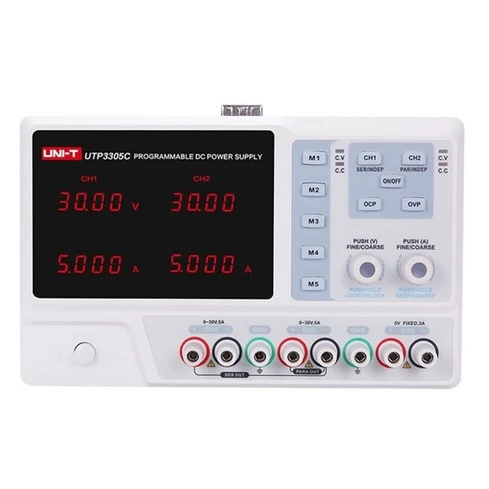

UNI T DC Power Supply UTP3305C is a high performance programmable linear DC power supplies with single channel output and process control. This UTP3305C power supply can meet diversified measurement needs with pure signal output, competitive specifications and a variety of interfaces. This linear power supply is built with voltage and current overload protection, convenient operation panel and one key storage recall. This best power supply can be used in the aging test, electronics circuit behaviour test, and automated system test of different environments. This signal channel power supply is used for electronics design, battery charging, electrical vehicle, research labs, and education sectors. UDP3305C is the latest version of UTP3305C.
Features Of UNI-T UTP3305C DC Power Supply:
- High precision 4-bit voltage and current display
- Overvoltage and current protection
- Over-temperature protection
- One-click data recall (up to 5 groups); Optional LAN interface
- Power-off memory; Software calibration; Keyboard lock
Specifications Of UNI-T Linear DC Power Supply UTP 3305C:
- Output voltage: 0~30V (CH1/CH2)
- Output current: 0~5A (CH1/CH2)
- Output power: 315W
- Load regulation voltage: <0.01%+5mV
- Load regulation Current: <0.1%+10mA
- Line regulation voltage: <0.01%+3mV
- Line regulation current: <0.1%+3mA
- Resolution voltage: 10mV
- Resolution current: 1mA
- Accuracy (25℃±5℃) voltage: <0.5%+20mV
- Accuracy (25℃±5℃) current: <0.5%+10mA
- Ripple (20Hz~20MHz) voltage: ≤2mVrms
- Ripple (20Hz~20MHz) current: ≤3mArms
- Output temperature coefficient voltage:
- ≤150ppm
- Output temperature coefficient current: ≤150ppm
- Voltage rise delay: ≤100ms (10% rated load)
- Parallel/Series load regulation: ≤0.1%+0.1V
- Output temperature coefficient voltage:
- CH3 output features voltage: 5V
- CH3 output features current: 3A
- CH3 output features voltage accuracy: ±50mV
- CH3 output features load regulation: ±50mV
- Interfaces: USB Device, RS-232
- Power: AC 100V/120V/220V/230V±10%, 50Hz/60Hz
- Display: 4 windows, LED
Package Include:
- UTP3305C DC Power Supply
- USB and RS-232 Interface Cables
- Output Cables
- PC Software CD
