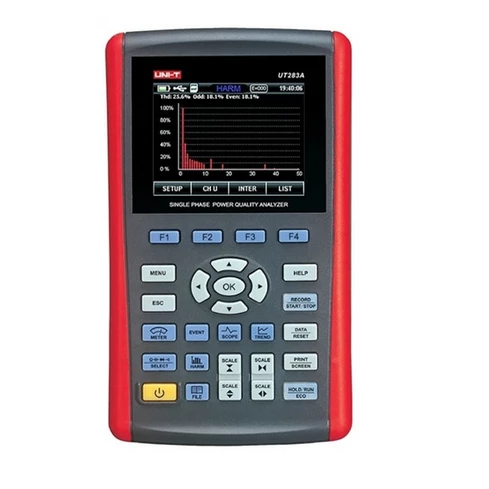

UNI-T UT283A power quality analyzer is a handheld multi-functional device designed to measure and analyze single-phase power systems. UT283A energy analyser meter is portable S class device can measure amplitude, phase, harmonics, current, voltage, and record results in SD card for further analysis and export. This power quality meter is suitable for professionals working in electrical power, medical, transportation, telecommunication, and other industrial areas. UNI-T UT283A power harmonics analyzer is now also available in Pakistan. UT285C Three Phase Power Quality Analyzer is the latest version.
Features Of UNI-T UT283A Power Quality Tester True RMS Measurement Data Recorder:
- Trend/event capture
- Harmonics/inrush current measurement
- File management through the USB interface
- Flick measure (PST/PLT values)
- User-friendly interface
- Multimeter functions
- Scope functions including waveform display
- 3.5 inches 64K colour TFT LCD display
- THD (Total Harmonic Distortion) function
- Long-term monitoring
Specifications Of UNI-T UT283A True RMS Single Phase Power Quality Analyzer Energy Meter:
- Voltage (V): 10V~1000V AC/DC ±0.5%Udin
- AC current (A): 10A/100A/1000A ±0.5%f.s.
- Frequency (Hz): 40~70Hz ±50mHz
- Power (W): >15%S ±1%S
- Power factor: 0~1 ±0.02
- Energy (Wh): 0~9999MWh ±1.5%rdg
- Crest factor: 1 to 10 ±5%
- Voltage harmonics or inter-harmonics: Um≥3%Unom (1~51th, step 0.5th) ±5%Urms; Um＜3%Unom (1~51th, step 0.5th) ±0.15%Unom
- Current harmonics or inter-harmonics: Im ≥10%Inom (1~51th, step 0.5th) ±5%Irms; Im ＜10%Inom (1~51th, step 0.5th) ±0.5%Inom
- Power harmonics: (1~51th, step 1st) Calculated based on voltage and current amplitude and phase accuracy
- Transients: ±6000V Peak, Fsample=2MHz ±5%rdg.±5%f.s
- Dip/swell/interrupt: 0~1000V AC Udin±1 %
- AC inrush current (A): 10A/100A/1000A ±1%f.s
- Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(1%+3)
- Capacitance (F): 60nF/600nF/6μF/60μF/600μF ±(4%+20)
- True RMS: Yes
- Harmonic analysis: Up to 51th
- Flick measure: 10 minutes, PST and PLT values
- Voltage ratio: Yes
- Current ratio: Yes
- Event capture: Yes
- Trend capture: Yes
- Data logging: 8GB
- USB interface: Yes
- Backlight adjustment: Yes
- Low battery indication: Yes
- Input protection: Yes
- Power: Li-ion battery: 7.4V 3600mAh
- Display: 70mm x 52mm; 3.5 inches 64K color TFT LCD (320 x 240)
- Product colour: Red and grey
- Product net weight: 808.4g
- Product size: 199mm x 118mm x 49mm
Documents and Software of UT283A:
- UT283A English manual
- UT283A Software
Package Includes:
- 1 x UNI-T UT283A Singal Phase Power Quality Analyzer
- 1 x Power Adaptor
- 1 x Test Lead
- 1 x USB Cable
- 1 x Software CD
- 1 x SD Card (8GB)
