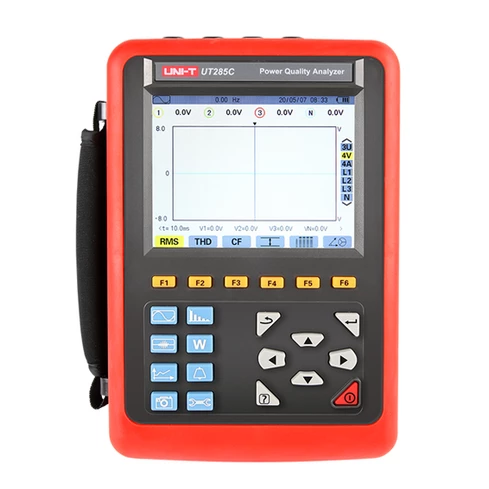

UT285C 3 Phase Power Quality Analyzer
UT285C 3 Phase Power Quality Analyzer
UT285C 3 Phase Power Quality Analyzer
UT285C 3 Phase Power Quality Analyzer
UT285C 3 Phase Power Quality Analyzer
Energy Meters

UT285C 3 Phase Power Quality Analyzer

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only
  • Waveform real-time show (4 channels voltage/4 channels modern-day).
  • Actual ut285c RMS values of voltages and currents
  • Top modern and voltage values
  • Total uni-t harmonic distortion (THD)
  • Under phase and cumulative, reactive, active, apparent energy uni-t meter
  • Transformer k thing
  • Strength factors (PF) and displacement elements of uni-t ut285c (DPF or COSΦ)
  • Brief-time period voltage flicker (PST)
  • 3 section unbalance(modern-day and voltage)
  • USB interface/laptop software program

SKU:TTH_TCBOX88

Rs. 485000 Rs. 557750

Quantity
Add to cart

Technical Specifications of UT285C Three Phase Power Quality Analyzer:

Specifications UT285C
True RMS phase-to-neutral voltage 1.0V~ 1000V ±(0.5%+5dgt)
True RMS phase-to phase voltage 1.0V~ 2000V ±(0.5%+5dgt)
DC voltage 1.0V~ 1000V ±(1.0%+5dgt)
True RMS current 10mA~ 1000A ±(0.5%+5dgt)
Peak of phase-to-neutral voltage 1.0V~ 1414V ±(1.0%+5dgt)
Peak of phase-to-phase voltage 1.0V~ 2828V ±(1.0%+5dgt)
Current peak 10mA~ 1414A ±(1.0%+5dgt)
Active power 0.000W~ 9999.9kW ±(1%+3dgt)
Cosφ≥0.8
±(1.5%+10dgt)
0.2≤Cosφ<0.8
Reactive power, inductive or capacitive 0.000RVA~ 9999.9kVAR ±(1%+3dgt)
Sinφ≥0.5
±(1.5%+10dgt)
0.2≤Sinφ<0.5
Apparent power 0.000VA~ 9999.9kVA ±(1%+3dgt)
Power factor -1.000~ 1.000 ±(1.5%+3dgt)
Cosφ≥0.5
±(1.5%+10dgt)
0.2≤Cosφ<0.5
Active energy 0.000Wh~ 9999.9MWh ±(1%+3dgt)
Cosφ≥0.8
±(1.5%+10dgt)
0.2≤Cosφ<0.8
Reactive energy, inductive or capacitive 0.000VARh~ 9999.9MVARh ±(1%+3dgt)
Sinφ≥0.5
±(1.5%+10dgt)
0.2≤Sinφ<0.5
Apparent energy 0.000VAh~ 9999.9MVAh ±(1%+3dgt)
Phase angle -179°~ 180° ±(2°)
Tanφ
(VA>50VA)
-32.76~ 32.76 φ:±(1°)
Phase shift of power factor
(DPF)
-1.000~ 1.000 φ:±(1°)
Harmonic ratio
(order 1 to 50) (Vrms>50V)
0.0%~ 99.9% ±(1%+5dgt)
Harmonic angle
(Vrms>50V)
-179°~ 180° ±(3°) harmonics of order 1 to 25
±(10°) harmonics of order 26 to 50
Total harmonic ratio 0.0%~ 99.9% ±(1%+5dgt)
Distortion factor
(DF or THD-R)<50
0.0%~ 99.9% ±(1%+10dgt)
Transformer K factor 1.00~ 99.99 ±(5%)
3 phases unbalance 0.0%~ 100% ±(1%)
Number of channels 4U/4I
Parameters of electricity W, VA, Var, PF, DPF, cosφ, tanφ
Energy parameters Wh, Varh, Vah
Harmonic 50
Total harmonic distortion Order 0~50, each phase
Expert mode Yes
Number of Transient records 150 sets
3 phases unbalance Yes
Min/Max  Yes
Alarm 40 different types of parameter selections, 12,800 sets alarm logs
Peak Yes
Phasor diagram display Auto
Auto power off Yes
Backlight Yes
Menu language English/Chinese
USB interface/PC software Yes
General Characteristics
Power 9.6V rechargeable lithium-ion battery
Product color Red and grey
Product net weight Instrument: 1.6kg, current clamp: 510g x 4
Product size 240mm × 170mm × 68 mm
Standard accessories 1pc carry cloth bag, (yellow, green, red, blue, black total 5pcs test lead), 4pcs alligator clip, 1pc power adapter, 1pc CD software, 4pcs 1000A current clamp
Standard individual packing Inner carton
Standard quantity per carton 1pc
Standard carton measurement 440 x 320 x 330mm
Standard carton gross weight 6.4kg
