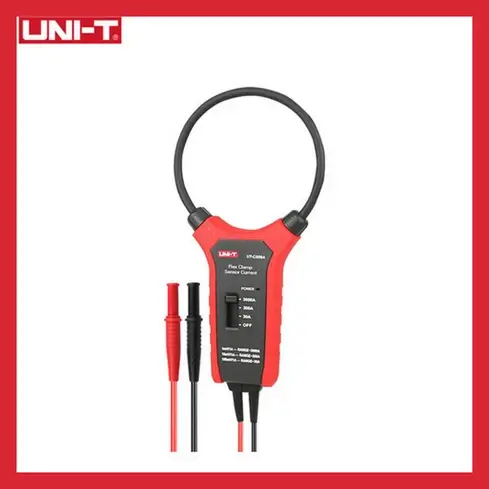

UNI-T UT-CS09A AC 3000A Flexible Clamp Meter Multimeter Flex Clamp Sensor

UNI-T UT-CS09A series flex clamp sensor solves problems in measuring high current conductors in tight spaces. UNI-T UT-CS09A is now available in Pakistan.

Features:

1. Flex clamp can measure from 1.5A to 3000A current

2. 2m drop proof

3. Test leads can support up to 15kg load

4. Safety rating: CAT IV 600V

5. Certification: CE&ETL

Technical specifications:

Model

UT-CS09A

AC current (resolution)

30A (0.1A)

±(3%+5)

300A (1A)

3000A (10A)

Frequency response

45Hz~500Hz (sine wave)

√

Features

Flex coil length

254mm (10 inches)

Function selection (SELECT)

Manual

Drop test

1m

Operating temperature

0°C~50°C

Storage temperature

-20°C~60°C

Storage humidity

≤80%RH

Low battery indication

About 3.3V

Power

1.5V AAA battery×3

Package includes: 1xUNI-T

UT-CS09A

AC 3000A Flexible Clamp Meter Multimeter
