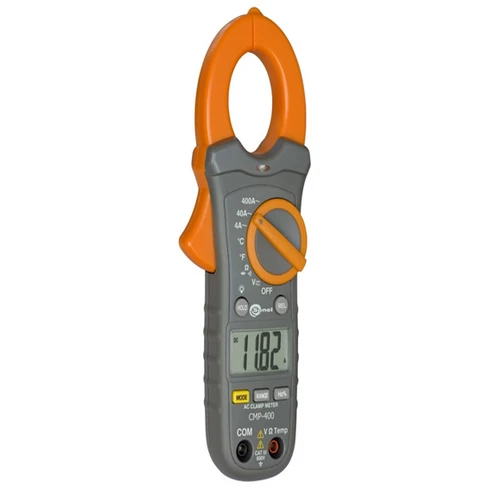

Sonel CMP-400 Digital Clamp-On Multimeter in Pakistan

Description:

DC current measurement (CMP-401 only) and AC current.

AC/

DC voltage measurement

up to 600 V.

Resistance measurement

and continuity test:

• continuity test with acoustic signalling (beeper) for resistance below 50.

Temperature measurement

(Fahrenheit and Celsius units).

Frequency measurement

. Diode test. Additionally:

• safe, insulated measuring clamps,
• double molded housing,
• autoranging/manual range selection,
• DATA HOLD function, for holding measured values,
• backlit LCD,
• REL function,
• over range indication,
• AUTO-OFF function.

Techinal specifications:

Temperature measurement

Range Accuracy -20,0...760°C ±(3% m.v. + 5°C) -4,0...1400°F ±(3% m.v. + 9°F)

*probe (K type) accuracy not included

Frequency measurement

Range Accuracy -10 Hz ±(1,5% m.v. + 2 dgt)

• sensitivity: 100 V (<50 Hz), 50 V (50…400 Hz); 15 V (401 Hz…10 kHz)

AC current measurement

Range Resolution Accuracy 4,000 A 0,001 A ±(2,5% m.v. + 12 dgt) 40,00 A 0,01 A ±(2,5% m.v. + 8 dgt) 400,0 A 0,1 A ±(2,8% m.v. + 8 dgt)

• frequency range: 50...60 Hz.

AC voltage measurement

Range Resolution Accuracy 400,0 mV 0,1 mV ±(1,5% m.v. + 30 dgt) 4,000 V 0,001 V ±(1,8% m.v. + 8 dgt) 40,00 V 0,01 V ±(1,8% m.v. + 8 dgt) 400,0 V 0,1 V ±(1,8% m.v. + 8 dgt) 600 V 1 V ±(2,5% m.v. + 8 dgt)

• frequency range: 50 Hz...400 Hz

DC voltage measurement

Range Resolution Accuracy 400,0 mV 0,1 mV ±(0,8% m.v. + 2 dgt) 4,000 V 0,001 V ±(1,5% m.v. + 2 dgt) 40,00 V 0,01 V ±(1,5% m.v. + 2 dgt) 400,0 V 0,1 V ±(1,5% m.v. + 2 dgt) 600 V 1 V ±(2% m.v. + 2 dgt)

Resistance measurement

Range Resolution Accuracy 400,0 Ω 0,1 Ω ±(1,0% m.v + 4 dgt) 4,000 kΩ 0,001 kΩ ±(1,5% m.v. + 2 dgt) 40,00 kΩ 0,01 kΩ ±(1,5% m.v. + 2 dgt) 400,0 kΩ 0,1 kΩ ±(1,5% m.v. + 2 dgt) 4,000 MΩ 0,001 MΩ ±(2,5% m.v. + 3 dgt) 40,00 MΩ 0,01 MΩ ±(3,5% m.v. + 5 dgt)

„m.v.”- measured value

Electric security: - measurement category: CAT III 600 V acc. to EN 61010 - 1:2004 - protection class acc. to EN 60529: IP40 Other technical data: - power supply: 9 V battery type 6LR61 - display: 4000 counts, backlit LCD - continuity test: I<0,5 mA, sound signal for R<50 Ω - diode test: I = 0,3 mA, U0 = 1,5 V DC - over range indication: 0L displayed - sampling rate: 2 times per second - input impedance: 10 MΩ (V DC and V AC) - clamp size: opening 30 mm (1,2”) - auto power OFF: approx. 30 min. - dimensions: 197 x 70 x 40 mm - weight: 183 g - accordance with following standards: EN 61010 - 1:2004, EN 61010 - 2 - 032 - quality standard ISO 9001

Rated operational conditions: - operating temperature: 0...+40°C - storage temperature: -20...+60°C - operating humidity: max 80% up to 31°C decreasing linearly to 50% at 40°C - operating altitude: max 2000 m

Package includes :

1xSonel CMP-400 Digital Clamp-On Multimeter
