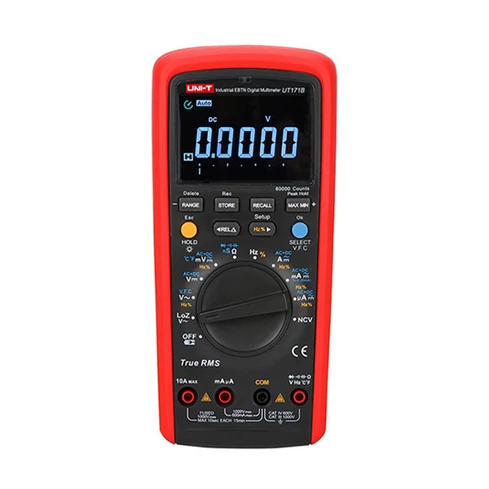

Digital multimeter of the UT171 series is with high precision, high reliability, high safety, automatic range of characteristics and now available in Pakistan. UT-171B meter is for accurate measurement of the voltage signal at 100 kHz broadband conditions, square wave signal, conductivity and other signals. UT 171 B best electric multimeters, product chipsets the start mode VFC, the internal will go through a filter circuit in particular high-frequency interference filters, ensuring accurate measurement data. You can apply occasions with VFC frequency voltage from this true RMS meter, full-scale overload protection and unique design, a more remarkable generation of practical electrical measurement instruments. UT-171B RMS multimeter can be used to detect various types of universities, foundry, telecommunications, manufacturing, oil, defence, electricity, electricity, circuits, electrical equipment, maintenance and repair of the ideal tool.
Features Of Multimeter UNI-T UT171B:
- Functions: measuring AC / DC current, AC / DC voltage, resistance, circuit on-off, conductivity, diode, capacitance, frequency, induced voltage, 4 - 20mA loopback test, temperature, etc.
- True RMS VT - WLCD display: maximum display up to 60000 counts
- Overload protection voltage between input terminal and grounding is 1000V
- Auto shutdown and auto range function, power save and convenient
- With data-storage, misoperation alarm function and USB / Bluetooth interface configuration
- Operation altitude: 0 - 2000m
- For users in design, research and repair needs
- Built-in lithium-ion battery
Specifications Of Digital Multimeter UNI-T UT171B For Electronics:
- DC Voltage: 600mV/6V/60V/600V/1000V
- DC Voltage Accuracy: ±(0.025%+5)
- AC Voltage: 600mV/6V/60V/600V/1000V
- AC Voltage Accuracy:±(0.4%+40)
- DC Current: 600μA/6000μA/60mA/600mA/6A/10A
- DC Current Accuracy:±(0.15%+10)
- AC Current: 600μA/6000μA/60mA/600mA/6A/10A
- AC Current Accuracy:±(0.75%+20)
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Resistance Accuracy: ±(0.05%+2)
- Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
- Capacitance Accuracy: ±(2.5%+40)
- Admittance: 60nS
- Admittance Accuracy: (±2.5%+40)
- Frequency: 10Hz~10MHz
- Frequency Accuracy: ±(0.01%+5)
- Temperature: -40°C~1000°C
- Temperature Accuracy: ±(1%+3°C) only up to 230°C with standard accessory thermocouple
- Display Count: 60000
- Auto/Manual Range: Yes
- True RMS: Yes
- Bandwidth: 100kHz
- AC+DC: Yes
- 4-20mA Loop: 0~100%
- LoZ (AC): Around 3kΩ
- Diode: Around 3V
- Continuity Buzzer: Yes
- Duty Cycle: Yes
- VFC: Yes
- NCV: Yes
- Data Hold/MAX/MIN: Yes
- Relative Mode: Yes
- Peak Hold: Yes
- Data Storage: 9999
- USB Interface: Yes
- EBNT Display: Yes
- LCD Backlight: Yes
- Analogue Bar Graph: 31
- Rechargeable: Yes
- Mis-plug Alarm: Yes
- Low Battery Indication: Yes
- Auto Power Off: Yes
- Input Protection: Yes
- Input Impedance for DCV: Around 10MΩ
- Power: 7,4V 1800mAh Li-Ion Battery
- LCD Size: 70.6mm x 35.3mm
- Weight: 384g
- Size: 206x95x55mm
Package Include:
- 1 x UNI-T Industrial True RMS Digital Multimeter UT171B
- 2 x Test Leads
- 1 x Point Contact Temperature Probe
- 1 x USB Interface Cable
- 1 x CD with software
- 1 x Power Adaptor
