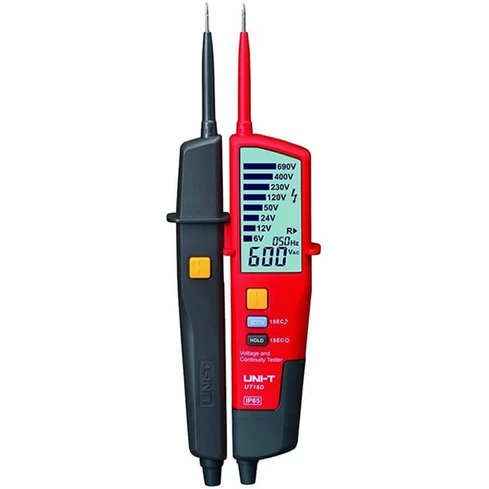

UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
UNI T Voltage And Continuity Tester UT18D
Multimeters

UNI T Voltage And Continuity Tester UT18D

(2 customer reviews)

Condition: New

Availability: In Stock

UT18 series (UT18B / UT18C / UT18D) are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

SKU:TTH_TMD1,Th6,KRT

Rs. 3999 Rs. 4599

Quantity
Add to cart

UNI T Voltage And Continuity Tester UT18D are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This multifunction voltage tester is categorized as CAT IV 600V and meets IP65 standard. UT-18D AC DC tester automatic range perfect tool for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.

Features Of Auto Range Volt Detector UNI-T UT18D:

  • Auto power off, the conductor to be measured is greater than 12V
  • Phase rotation test
  • Continuity test with buzzer and LED indication
  • Low battery indication and over-voltage prompt
  • Flashlight
  • Test live voltage without batteries
  • Buzzer and silent modes available
  • Auto range
  • Polarity indication

Specifications Of Waterproof Voltage Detector AC DC Tester UT18D:

Specifications Range UT18D
Voltage (V) 6V 5V±1V
12V 8V±1V
24V 18V±2V
50V 38V±4V
120V 94V±8V
230V 180V±14V
400V 325V±15V
690V 562V±24V
Phase rotation test 57Vac~400Vac (3 phase)
Frequency: 50Hz~400Hz
Single lead (L2)
voltage detection
Operating voltage: 100V~690V
Frequency: 50Hz~400Hz
Continuity test Resistance: 0Ω~100kΩ (+50% accuracy)
Beeper and LED light indication
RCD test Operating voltage: 230V (50Hz~400Hz)
Polarity detection Positive & Negative
Self-inspection All LED or LCD
Features
Voltage indication   LCD
Exceed voltage Voltage range: 713V~788V
Auto standby Standby current<10μA
Slient mode All range
Work light
Low battery indication Around 2.5V
LCD backlight
LCD display (voltage) 6V~690V ±(1.5%+5)
LCD display (Frequency) 40Hz~400Hz ±(3%+5)
IP65
General Characteristics
Power 1.5V battery (R03)×2
Display 73.5mm x 35.5mm
Product color Red and grey
Product net weight 280g
Product size (W x H x D) 272mm x 85mm x 31mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 30pcs
Standard carton measurement 440mm x 295mm x 455mm
Standard carton gross weight 17.5kg

Package includes:

  • 1 x UNI-T UT18D Voltage and Continuity Tester

Best Online Shopping website for UNI T Voltage And Continuity Tester UT18D Continuity Checker Volt Detector in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
