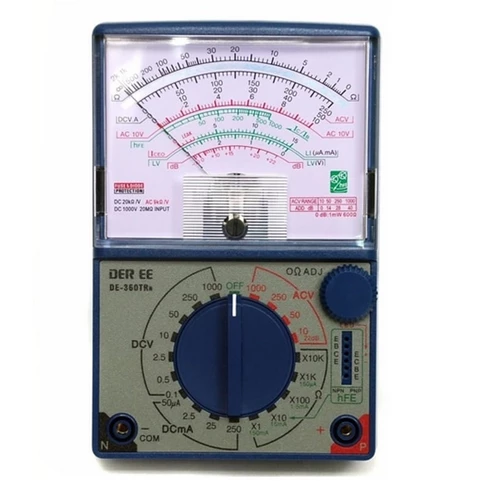

Analog Multimeter DE360TRN

Analog Multimeter DE360TRN is easy to read, colour-coded analogue displays. Analog meter DE360TRN, you can use it to measure AC/DC voltage, DC current, resistance, diode check, continuity and transistor leak current, for DC current. This meter can measure as low as 10 microamps and up to 250 mA, which is hard to do with a digital multimeter. The acts as an ammeter with low series resistance to measure direct current. For measuring high current, we connect a shunt resistor across the galvanometer so that the current through the galvanometer does not cross its maximum allowed value. Here, a significant portion of the current to be measured bypasses through the shunt. With that shunt resistance, an analogue multimeter can measure even milli-ammeter or ammeter ranges of current.

Features Of Analog Multimeter DE360TRN:

• Tests AC voltage, DC voltage, DC current, resistance, continuity and batteries.
• 20kOhm/V DC sensitivity.
• Mirrored scale.
• With fuse overload protection circuitry incorporated.
• Easy to read, colour-coded analogue displays.
• Manual range selection.
• Pocket-sized analogue tester.

Specifications Of Analog Meter DE360TRN Analog Ohmmeter:

1. DCV: 0 - 0.1V ±1% 0.25V/2.5/10V/50V/250/1000 ±3%
2. ACV: 0 -10/50/250/1000V ±4%
3. DCA: 0 - 50µA/2.5mA/25mA/250mA ±3%
4. Resistance: 0 - 2K/20K/200K/2M/20Mohm ±3% *dB: -10 dB - 22 dB
5. Light: Diode check (including LED)
6. Continuity: both Buzzer & flash
7. Transistor leak current Features: All range fused
8. Compact size
9. Tilt back-stand
10. Continuity flash
11. 0-ohm adjustment

Package Includes:

• 2 x Test Leads
• 2 x AA Battery
• 1 x User Manual
