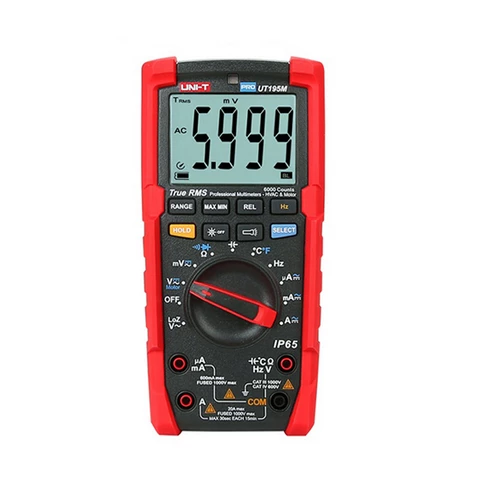

UT195 series are handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT-195M electric multimeter troubleshooting capability, resolution and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. This UT 195 M best uni-t multimeter is exquisitely designed and easy to operate.
Features Of UT195M Professional Multimeter:
- IP65 rating, 2m drop-proof, CAT III 1000V, CAT IV 600V
- Large 6000-count LCD screen
- True RMS
- ACV 750V 5kHz bandwidth
- Flashlight
- Auto LCD backlight controlled by the light sensor (feature can be turned off)
- LoZ voltage test, for ghost voltage measurement
- Motor phase sequence measurement with 2 probes
- 20A current measurement (max 30 seconds)
Specifications Of UT 195M Digital multimeter For Industrial Use:
- Manufacturer: UNI-T
- Type of meter: Digital multimeter
- Measurement: AC voltage, capacitance, DC current, DC voltage, frequency, resistance, temperature
- Kind of display used: LCD (6000), with a backlit
- DC voltage measuring range: 600m/6/60/600/1000V
- DC voltage measuring accuracy: ±(0,5% + 3 digits)
- AC voltage measuring range: 600m/6/60/600/750V
- AC voltage measuring accuracy: ±(0,7% + 3 digits)
- DC current measuring range: 600µ/6000µ/60m/600m/6/20A
- DC current measuring accuracy: ±(0,8% + 3 digits)
- AC current measuring range: 600µ/6000µ/60m/600m/6/20A
- AC current measuring accuracy: ±(1% + 3 digits)
True effective value measurement: - True RMS
- Resistance measuring range: 600/6k/60k/600k/6M/60MΩ
- Resistance measuring accuracy: ±(0,8% + 2 digits)
- Capacitance measuring range: 6n/60n/600µ/6m/60mF
- Capacitance measuring accuracy: ±(3% + 5 digits)
- Frequency measuring range: 600...40MHz
- Frequency measuring accuracy : ±(0,1% + 4 digits)
- Temperature measuring range: -40...1000°C
- Diode test: Yes
- Continuity test: Acoustic indication
- Operating temperature: 0...40°C
- IP rating: IP65
- Overall dimensions (W x D x H): 95x58x195mm
- Weight with battery: 473g
- Power supply: 1 battery 9V 6F22
- Conform to the norm: EN61010 1000V CAT III, EN61010 600V CAT IV
- Resistance to: fall from 2m height
Package Includes:
- 1 x UT195M Professional Multimeter
- 2 x Test probes
- 1 x Drop-like K-type temperature probe
- 1 x Battery
- 1 x Case
