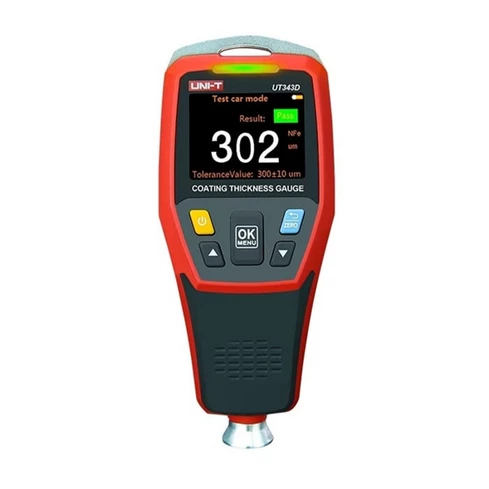

UNI-T UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This UT-343D coating thickness meter is designed with a unique quick test feature. This car paint thickness gauge, which allows users to set thickness range and using a 3-colour LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 digital thickness gauge meter display is auto rotatable. This CE certified best car paint thickness gauge can store up to 500 sets of data for further analysis through the PC analytical software that is included. This thickness gauge tool is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.
Specifications | Range |
Measuring range | 0~1250um |
Accuracy | ±(3%H+1)um |
Resolution | 0.1um (0~99.9um); 1um (100~1250um) |
Measurement method | Single/Continuous |
Measurement mode | Max/Min/Avg |
Metal type | Ferrous/ non-ferrous |
Features | |
Display type | 2.0-inches TFT LCD (320 x 240 pixels) |
LCD brightness control | √ |
Auto rotatable screen | √ |
Unit conversion | √ |
Audio alarm | √ |
LED alarm | √ |
PC analysis software | √ |
USB communication | √ |
Quick test mode | √ |
Data storage | 500 groups |
Auto power off | √ |
Low battery indication | √ |
General Characterisitics | |
Power | 1.5V AA battery (LR6) x 2 |
Display | 48mm x 36mm |
Product color | Red and grey |
Product net weight | 175g |
Product size | 153.5mm x 64.5mm x 41mm |
Standard accessories | Micro USB interface cable, standard piece, batteries, cloth bag |
Standard individual packing | Gift box, English manual |
Standard quantity per carton | 20pcs |
Standard carton measurement | 355mm x 320mm x 195mm |
Standard carton gross weight | 7.5kg |
Best Online Shopping website for UNI T Coating Thickness Gauge Meter Tester UT343D Digital Thickness Measuring Car Paint Gauge Material Coating Thickness Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
