UT18 series (UT18B / UT18C / UT18D) are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
SKU:TTH_tankitapaUNI

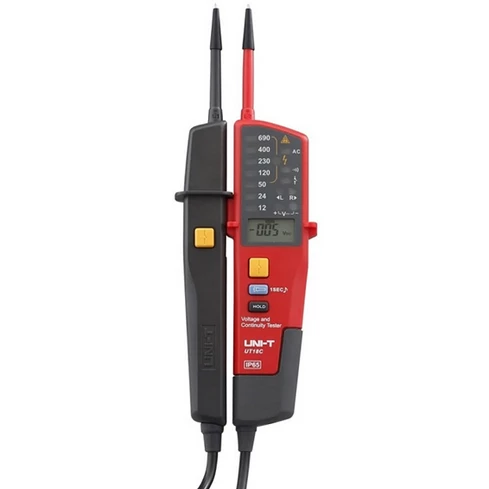

UNI-T UT18C digital voltage meter is designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This voltage detector UNI-T UT18C is categorized as CAT IV 600V and meets IP65 standard. This voltage tester UNI-T UT18C are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
Specifications | Range | UT18C |
Voltage (V) | 12V | 8V±1V |
24V | 18V±2V | |
50V | 38V±4V | |
120V | 94V±8V | |
230V | 180V±14V | |
400V | 325V±15V | |
690V | 562V±24V | |
Phase rotation test | 57Vac~400Vac (3 phase) | √ |
Frequency: 50Hz~400Hz | ||
Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ |
Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
Beeper and LED light indication | ||
RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
Polarity detection | Positive & Negative | √ |
Self-inspection | All LED or LCD | √ |
No power test | Operating voltage: 100~690V | √ |
Features | ||
Voltage indication | LED | |
Exceed voltage | Voltage range: 713V~788V | √ |
Auto standby | Standby current<10μA | √ |
Slient mode | All range | √ |
Work light | √ | |
Low battery indication | Around 2.5V | √ |
LCD display (voltage) | 6V~690V | ±(1.5%+5) |
LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
IP65 | √ | |
General Characteristics | ||
Power | 1.5V battery (R03)×2 | |
Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | |
Product color | Red and grey | |
Product net weight | 280g | |
Product size (W x H x D) | 272mm x 85mm x 31mm | |
Standard accessories | Batteries | |
Standard individual packing | Blister, English manual | |
Standard quantity per carton | 30pcs | |
Standard carton measurement | 440mm x 295mm x 455mm | |
Standard carton gross weight | 17.5kg |
