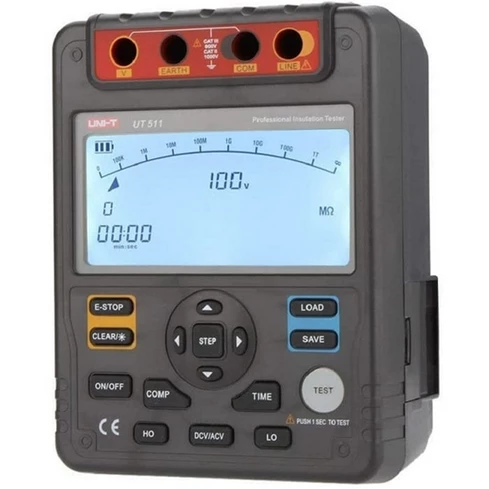

UNI T Digital Insulation Resistance Meter UT511
UNI T Digital Insulation Resistance Meter UT511
UNI T Digital Insulation Resistance Meter UT511
UNI T Digital Insulation Resistance Meter UT511
UNI T Digital Insulation Resistance Meter UT511
UNI T Digital Insulation Resistance Meter UT511
Other Meters

UNI T Digital Insulation Resistance Meter UT511

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only

UT510 series (UT511, UT512, UT513A and UT516B) testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce test voltage up to 5kV.

SKU:TTH_TMD1,Th6,KRT

Ask Price
Quantity
Add to cart

UNI T Digital Insulation Resistance Meter UT511 is a kind of intelligent insulation tester. The UT-511 insulation test meter design takes microcomputer technology design as the core and combines the large scale integrated circuit with digit circuit. This megger is equipped with strong measuring software and data processing software. This digital megger is applied to the parameter measurement of insulation resistance, voltage and low resistance. This insulation resistance megger has stable performance and simple operation. It is applicable to on-site measurement and repair of the electrical equipment and charging line. This megger tester is the ideal tool for maintaining electrical equipment. This insulation resistance multimeter is also used for smelting, communication, manufacture, fossil oil, national defence, electricity, chemical industry and circuit.

Features Of UNI-T UT511 Insulation Resistance Tester:

  • Large 9999 display with 30-segment analogue bar graph
  • PI/DAR measurements
  • Comparison, upper and lower limit functions
  • Continuous measurement mode
  • Auto power off
  • 18-group data storage
  • Backlight
  • Auto current discharge and high-voltage output alarm
  • Time measurement mode, auto measure within 15 minutes
  • Low battery and over range indications

Specifications Of UNI-T UT511 Insulation Resistance Meter Megohmmeter Ohmmeter Voltmeter:

  1. Insulation Resistance: 500 kOhm ~ 10 GOhm
  2. Insulation Resistance Best Accuracy: +/- (3%+5)
  3. Low Resistance: 1000 Ohm
  4. Testing Voltage: 100V / 250V / 500V / 1000V
  5. Testing Voltage Best Accuracy: 0 ~ 20%
  6. DC Voltage: 1000 V
  7. DC Voltage Best Accuracy: +/- (1%+3)
  8. AC Voltage: 750 V
  9. AC Voltage Best Accuracy: +/- (2%+3)
  10. Auto Range: Yes
  11. Auto Power Off: Yes
  12. Low Battery Indication: Yes
  13. Data Logging: 18
  14. Comparison Measurement: Yes
  15. Polarization Index(PI): Yes
  16. Dielectric Absorption (DAR): Yes
  17. LCD
  18. Backlight
  19. : Yes
  20. Analogue Bar Graph: 30
  21. Over Range Warning: Yes
  22. High Voltage Indication: Yes
  23. Timer: Around 30 minutes
  24. Power: 8x 1.5 V bat. (R14)
  25. Product size: 202 x 155 x 94 mm
  26. Product weight: 2 kg

Package Includes:

  • 1 x UNI-T UT511 Insulation Resistance Tester
  • 2 x one plug test lead to one alligator clip(Black and Green)
  • 1 x two plugs test lead to one alligator clip(Red)
  • 1 x Toolbox
  • 1 x English Manual
