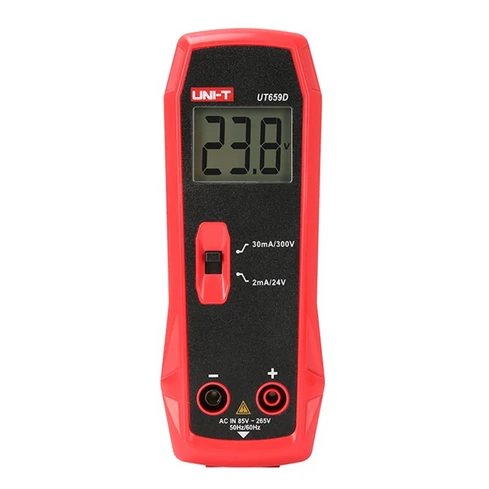

UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after 1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.
SKU:TTH_TCBOX83
UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after 1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.
| Specifications | Range | UT659D |
| Certifications | CE/RoHS | |
| Output voltage | 24V | √ |
| 300V | √ | |
| Output current | 2mA | √ |
| 30mA | √ | |
| Continuity | Output voltage: 5V (DC) | |
| Measuring resistance: 0~99.9Ω | ||
| Input range | 85V to 265V @ 50/60Hz | |
| Backlight function | constant on | |
| Safety protection | High-impedance open circuit | |
| Operating temperature | 0°C~40°C | |
| Storage temperature | -10°C~50°C | |
| Relative humidity | <80% RH | |
| Operating altitude | ≤2000m | |
| Drop protection | 1m | |
| Category ratings | CAT II 300V | |
| General Characterisitics | ||
| Power | AC 85V~260V， 50Hz/60Hz | |
| Display | 60mm x 35mm | |
| Product net weight | 175g | |
| Product size | 150mm x 56mm x 42mm | |
| Standard accessories | Power cable, test leads, English manual | |
| Standard individual packing | Gift box, blister | |
| Standard quantity per carton | 20pcs | |
| Standard carton measurement | 345mm x 335mm x 245mm | |
| Standard carton gross weight | 7.7kg | |
