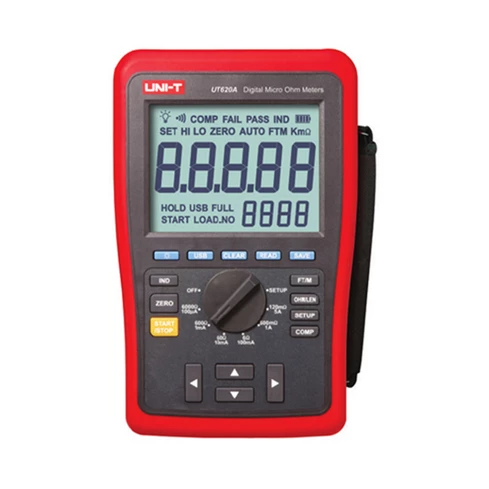

UT620 series are used to measure DC low resistance through 4-wire method. Some of their features are: Comparison function to determine if the device is in good condition, unknown wire length calculation (FT/M); two-way data transmission by USB interface; built-in rechargeable lithium battery.
SKU:TTH_TCBOX83
UT620 can be used in narrow space for on-site troubleshooting, such as metal coating resistance/motor and small transformer winding resistance measurements, earth system joints/welding points/power distribution cabinet bus and lead connection inspections and more.
Specifications | Range | UT620A |
Resolution | 10uΩ | |
Resistance (Ω) | 120mΩ/5A | ±(0.25%+25) |
600mΩ/1A | ±(0.25%+25) | |
6Ω/100mA | ±(0.25%+25) | |
60Ω/10mA | ±(0.25%+25) | |
600Ω/1mA | ±(0.25%+25) | |
6kΩ/100uA | ±(0.75%+30) | |
Features | ||
Display count | 60000 | |
Four-wire measurement | √ | |
Wire length measurement | √ | |
High/low limit alarm | √ | |
Data storage | 1000 | |
USB data transmission | √ | |
Manual range | √ | |
Backlight | √ | |
Relative value | √ | |
Low battery indication | √ | |
General Characterisitics | ||
Power | Li-ion battery 7.4V 4000mAh, rechargeable | |
Display | 116mm x 87.5mm | |
Product color | Red and grey | |
Product net weight | 1.5kg | |
Product size | 268mm x 168mm x 60mm | |
Standard accessories | Test leads with Kelvin clips (red & black), power cord, power adaptor, USB interface cable, PC software CD | |
Standard individual packing | Gift box, carrying bag, English manual | |
Standard quantity per carton | 1pcs | |
Standard carton measurement | 370mm x 90mm x 290mm | |
Standard carton gross weight | 3kg | |
Optional accessories | Four-wire test probes (red & black) x 1 |
