UTi120T Thermal Imager

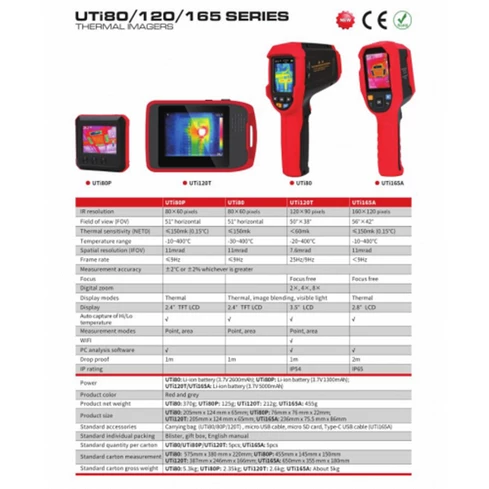

Technical Specifications UTi120T Thermal Imager:

1. IR resolution: 120×90 pixels
2. Field of view (FOV): 50°×38°
3. Thermal sensitivity (NETD): ＜60mk
4. Temperature range: -20~400℃
5. Spatial resolution (IFOV): 7.6mrad
6. Frame rate: 25Hz/9Hz
7. Measurement accuracy: ±2℃ or ±2% whichever is greater
8. Digital zoom: 2×, 4×, 8×
9. Display modes: Thermal, image blending, visible light
10. Display: 3.5” LCD
11. Power: Li-ion battery (3.7V 5000mAh)
12. Product size: 205mm x 124 mm x 65mm

Advantages of UTi120T thermal imager detection:

• Intuitive, efficient, and convenient, making users directly "see" the temperature variation.
• Thermal condition of different locations for comprehensive analysis, providing more information for judgment
• Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
• PC software for data analysis and report output

Package Include:

• 1 x UTi120T Thermal Imager

• SKU: TTH_UTi120TK78
• /
• Category: Meters
• /
• Tags: UTi120T Thermal Imager , UTi120T
