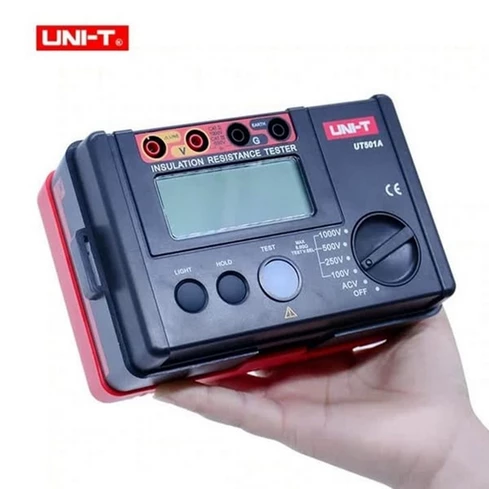

UNI T Insulation Resistance Tester UT501A

UNI T Insulation Resistance Tester UT501A is used to measure the insulation resistance of electrical equipment and household appliances. This UT-501A earth insulation resistance meter is done by measuring the insulation resistance between electrical circuits or between circuits and ground. This megohmmeter voltmeter can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). This insulation megger ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters and other electrical equipment that can operate in a safe and accurate manner.

Features Of UNI-T UT-501A 1000V Insulation Resistance Ground Tester MegOhmmeter Volt Meter:

• Measure insulation resistance across a wide range
• Test voltages of 100V, 250V, 500V and 1000V
• Large size LCD screen with backlight (can be switched on/off)
• 2000 count display
• Simple-to-use
• Large test initiate button
• Ports for test leads
• Data hold function
• Various indicators available on the device

Specifications Of UNI-T UT501A Insulation Earth Ground Resistance Meter Megger Voltmeter:

1. Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
2. 100V: 0.00MΩ~100MΩ ±(3%+5)
3. 250V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
4. 500V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
5. 1000V: 0.00MΩ~99.9MΩ ±(3%+5); 100MΩ~5.5GΩ ±(5%+5)
6. Load Current: 50V(R=50KΩ) 1mA 0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%; 500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
7. Short Circuit Current: <2mA
8. AC Voltage (V): 30V~750V ±(2%+3)
9. Display Count: 2000
10. Automatic measurement: Yes
11. Low Battery Indication: Yes
12. LCD Backlight: Yes
13. Alarm Light Display: Yes
14. Alarm Buzzer: Yes
15. High Voltage Indication: Yes
16. Over Load Indication: Yes
17. Auto Discharge: Yes
18. Test Voltage Vice Display: Yes
19. 10M? Internal Resistance Test: Yes
20. Power: 6 x 1.5V Alkaline batteries (Not included)
21. LCD Size: 65mm x 27mm
22. Product Net Weight: 500 g
23. Product Size: 150mm x 100mm x 71mm
24. Product Color: Red and Grey
25. Package Size: 18.5 x 15 x 9cm / 7.3 x 5.9 x 3.7in
26. Package Weight: 700g / 1.5lb

Package Includes:

• 1 x Megohmmeter UNI-T UT501A
• 2 x Test leads
• 2 x Test probes
• 1 x Alligator clip
• 1 x Carrying bag
• 1 x Strap
• 1 x User manual
