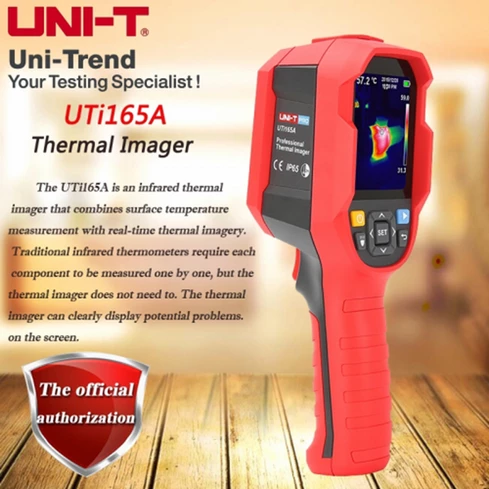

UNI T Thermal Imager UTi165A

Technical Specifications:

• IR resolution: 160×120 pixels
• Field of view (FOV): 56°×42°
• Thermal sensitivity (NETD): ≤150mk (0.15℃)
• Temperature range: -10~400℃
• Spatial resolution (IFOV): 11mrad
• Frame rate: ＜9Hz
• Measurement accuracy: ±2℃ or ±2% whichever is greater
• Display modes: Therma
• Display: 2.8” LCD
• Power: Li-ion battery (3.7V 5000mAh)
• Product size: 236mm x 75.5 mm x 86mm

Advantages of thermal imager detection:

• Intuitive, efficient, and convenient, making users directly "see" the temperature variation.
• Thermal condition of different locations for comprehensive analysis, providing more information for judgment
• Avoiding judgment errors, reducing labor costs, and discovering poor heat dissipation and hidden trouble points
• PC software for data analysis and report output

Package Include:

• 1 x UTi120T Thermal Imager

• SKU: TTH_TMD1,Th6,KRT
• /
• Category: Meters
• /
• Tags: UNI T Thermal Imager UTi165A , UTi165A , UTi 165A
