UNI-T UT712 voltage loop process calibrator meter
UNI-T UT712 voltage loop process calibrator meter
UNI-T UT712 voltage loop process calibrator meter
Other Meters

UNI-T UT712 voltage loop process calibrator meter

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TMD1,Th6,KRT

Rs. 51000 Rs. 58650

Quantity
Add to cart

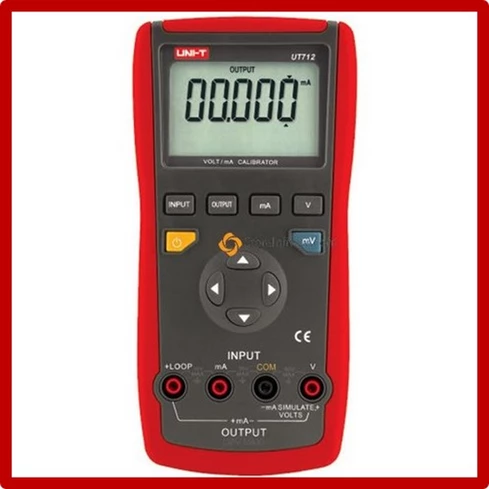

UNI-T UT712 Calibrator is a source and measurement tool for 0 to 20 mA current loop testing and DC voltage from 0 to 20 V. Operates in source and measurement modes alternatively. Operating parameters are displayed on the screen.

Features:

  • Ramp Voltage: 0-5V/0-10V/0-20V ±(0.03%+2)
  • Ramp Current: 0-10mA/0-20mA/4-20mA ±(0.03%+2)
  • Loop Power: 24V ± 10%
  • Simulating: 22mA ± (0.03%+2)
  • Auto Power Off: √
  • Low Battery Indication: √
  • USB Interface: √
  • Temperature Coefficient: 0°C?18°C/28°C?50°C ±0.005% x Range

Specifications:

  • Source Voltage (V): 20V ± (0.03%+2)
  • Source Current (A): 22mA ± (0.03%+2)

General characteristics:

  • Power: 1 * 9V Battery?6F22) (not included)
  • Product Net Weight: 410g
  • Product Size: 96mm * 193mm * 47mm
  • LCD Size: 40mm * 63mm
  • Product Color: Red and Grey

User Manual:

Download UNI-T UT712 Calibrator User Manual.

Package Include:

1XUNI-T UT712 voltage Loop process calibrator meter
