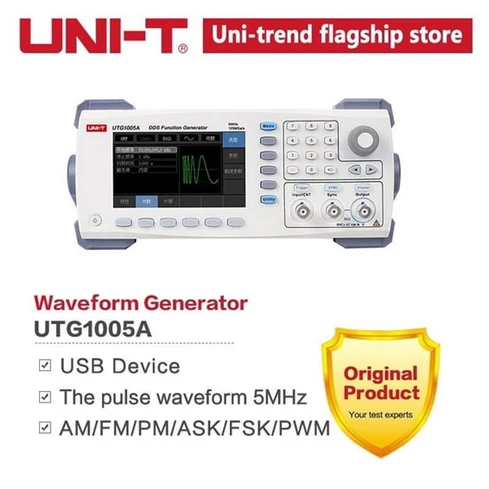

UNI-T UTG1005A function/arbitrary waveform generators adopt direct digital synthesis technology to produce accurate and stable waveform output with 1Hz resolution. Modulations such as AM, PM, FM, ASK, FSK, etc. with an internal or external source, linear and logarithmic sweeps, and USB interface are available. Oscilloscope Generator has a Standard performance of the double channel. The panel of Signal Generator is ergonomically constructed for simple operation. Multifunctional Generator has many applications in Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television, and radio systems; semiconductor component testing, etc.
Features Of UNI-T UTG1005A Multifunctional Signal Generator:
- 5MHz sine wave output, full band with 1Hz resolution
- The pulse waveform 5MHz, rise and fall time adjustable
- 125MS/s sampling rate and 14bit vertical resolution
- Standard performance of single-channel
- 16 nonvolatile waveform memory
- Modulation choices: AM, FM, PM, ASK, FSK, PWM
- 4.3 inch high-resolution TFT color LCD display
- Standard interface: USB Device
Specifications Of General 5Mhz Sine Square and Ramp Wave Function Generator:
- Channel: 1
- Bandwidth: 5Mhz
- Sampling rate: 125MS/s
- Vertical Resolution: 14 bits
- Waveform: Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
- Sweep modes: Logarithmic, linear
Frequency Characteristics:
- Sine: 1μHz~5MHz
- Square: 1μHz~5MHz
- Ramp: 1μHz~400kHz
- Pulse: 1μHz~1MHz
- Arbitrary: 1μHz~1MHz
- Resolution: 1μHz
- Accuracy:
- Within 90 days ± 50ppm
- Within 1 year ± 100ppm
- 18℃~28℃
Output Characteristics:
- Output standard waveform: Sine, square, ramp, triangle, pulse, noise, DC, arbitrary
- Amplitude range: 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
- Modulation types: -5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
- Amplitude Resolution: 1mV
General Characteristics:
- Power: 100~240VAC, 50Hz/60Hz
- Display: 4.3 inches TFT LCD, WVGA (480 x 272)
- Color: White and grey
- Dimension: 165mm x 110mm x 320mm
- weight: 3.2kg
Package Include:
- 1x signal generator
- 1x USB interface cable
- 1x power cord
- 1x BNC cable with alligator clips
