SKU:TTH_TCBOX74
| Specifications | |

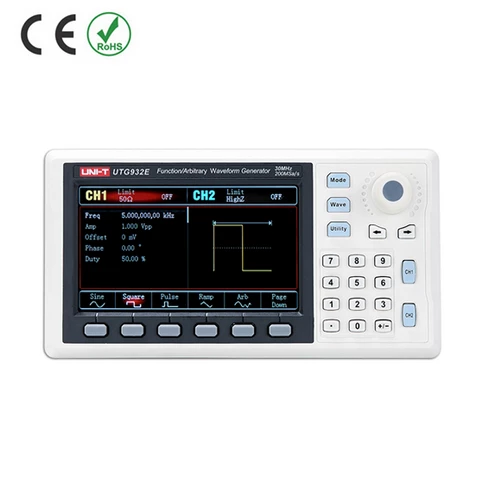

| Model | UTG932E |
| Channel | 2 |
| Max frequency | 30MHz |
| Sampling rate | 200MS/s |
| Vertical resolution | 14 bits |
| Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary |
| Sweep modes | Logarithmic, linear |
| Frequency Characteristics | |
| Sine | 1μHz~30MHz |
| Square | 1μHz~15MHz |
| Ramp | 1μHz~400kHz |
| Pulse | 1μHz~15MHz |
| Arbitrary | 1μHz~10MHz |
| Resolution | 1μHz |
| Accuracy | Within 90 days ± 50ppm |
| Within 1 year ± 100ppm | |
| 18℃~28℃ | |
| Output Characteristics | |
| Impedance | 50Ω/High Z |
| Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) |
| DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) |
| Amplitude resolution | 1mV |
| General Characterisitics | |
| Power | 100~240VAC, 50Hz/60Hz |
| Display | 4.3”TFT LCD (480×272) |
| Product color | White and grey |
| Product net weight | 0.33kg |
| Product size | 172mm x 90mm x 68mm |
| Standard accessories | USB interface cable, power cord, BNC cable with alligator clips |
| Standard individual packing | Carton box |
| Standard quantity per carton | 4pcs |
| Standard carton measurement | 435mm x 360mm x 125mm |
| Standard carton gross weight | 3.8kg |
