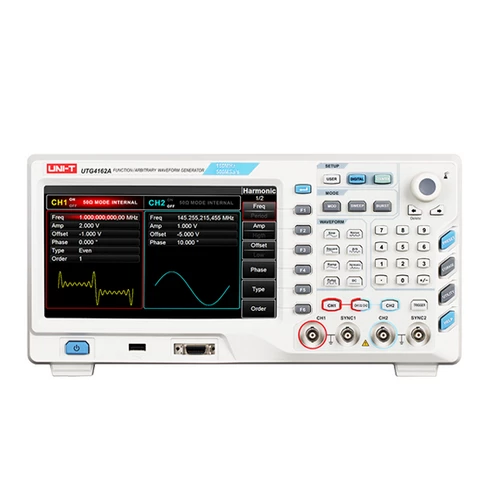

UNI-T UTG4162A Function/Arbitrary Waveform Generator
UNI-T UTG4162A Function/Arbitrary Waveform Generator
UNI-T UTG4162A Function/Arbitrary Waveform Generator
UNI-T UTG4162A Function/Arbitrary Waveform Generator
Signal Generator

UNI-T UTG4162A Function/Arbitrary Waveform Generator

Condition: New

Availability: In Stock
Advance Payment Only
  • Type: Function/arbitrary waveform generator
  • Brand: UNI-T
  • Bandwidth: 160MHz
  • Sampling rate: 500MS/s
  • Square/Pulse: 1μHz~50MHz
  • Harmonic: 1μHz~80MHz
  • Resolution: 1μHz
  • Model Number: UTG4162A
  • Channels: 2
  • Sine: 1μHz~160MHz
  • Slope: 1μHz~4MHz
  • Noise (-3dB): 160MHz bandwidth
  • Frequency range: 1μHz~40MHz

SKU:TTH_TCBOX74

Rs. 300000 Rs. 345000

Quantity
Add to cart
Model UTG4162A
Bandwidth 160MHz
Channels 2
Sampling rate 500MS/s
Waveforms Sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary
Working modes Output on/off, continuous, modulation, sweep, burst
Modulations AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Frequency Characteristics
Sine 1μHz~160MHz
Square/Pulse 1μHz~50MHz
Slope 1μHz~4MHz
Harmonic 1μHz~80MHz
Noise (-3dB) 160MHz bandwidth
Resolution 1μHz
Arbitrary Waveform
Frequency range 1μHz~40MHz
Length 8~32Mpts
Vertical resolution 16 bits
Min rise/fall time (typical: 1Vpp) <5ns
General Characteristics
Power 100V~240V ACrms, 50Hz/60Hz
Display 8-inch TFT LCD, WVGA (800 x 480)
Product color White and grey
Product net weight 3.5kg
Product size 336mm x 164mm x 108mm
Standard accessories BNC-BNC cable x 2, USB interface cable, PC software CD, power cord
Standard individual packing Carton box
Standard quantity per carton 1pcs
Standard carton measurement 405mm x 225mm x 265mmv
Standard carton gross weight 4.8kg
