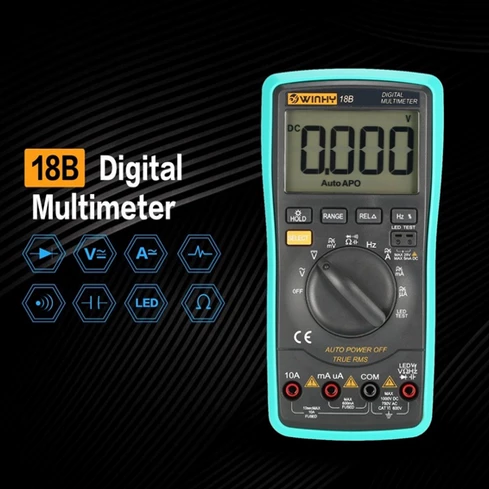

This digital multimeter 18B is capable of measuring AC / DC voltage, AC / DC current, resistance, capacitance, frequency, diode, LED test and continuity test.This digital multimeter is designed to offer users better performance and a higher security rating.The unique structural design makes it a new type of multimeter with a high performance / price ratio and a better choice for the laboratory, the factory and electricity.
Features:
- Multifunction: can accurately measure the AC / DC voltage, AC / DC current, resistance, capacitance, frequency, diode, LED test and continuity test.
- Portable design: there is a back support to support multimeter, and you can also pick up the test probe for your convenience.
- Widely used: it is a perfect tool for the laboratory, the factory and the electricity.
- Easy to use and clear to read: with large LCD screen, easy to use and read.
- More advantages: Automatic shutdown, range, selection, real RMS, data retention, range indication and low voltage display.
Specifications:
- Model: 18B Display: 5999 account screen
- Color: gray + blue Diode test: Yes
- LED test: Yes Continuity: Yes
- Wallpaper: Yes Auto power off: Yes
- Waiting date: Yes Select: Yes
- True RMS effective value: Yes Power: 9 V 6F22 battery (not included)
- Product size: 184x90x46mm Net article weight: 324G
- DC voltage: 600mV / 6V / 60V / 600v (0.5% + 3), 1000v (0.8% + 10)
- AC voltage: 600mV / 6V / 60V / 600v (0.8% + 5), 750v (1.2% + 10)
- Direct current: 600uA / 6000ua (0.8% + 10), 60mA / 600mA / 10a (2.0% + 30)
- Alternating current: 600uA / 6000ua (0.8% + 10), 60mA / 600mA / 10a (2.0% + 30)
- Resistance: 600 (0.8% + 5), 6k / 60k / 600k / 6m (0.8% + 3), 60m (1.0% + 25)
- Capacitance: 60nF / 600nF / 6 UF / 60uF ± (3.5% + 20) 600 UF / 6000uF ± (5.0% + 10)
- Frequency: 10Hz / 100Hz / 1 kHz / 100 kHz / 1 MHz / 20MHz ± (0.1% + 3)
Package Include:
- 1 x Digital Multimeter
- 2 x of pens
- 1 x User's manual
