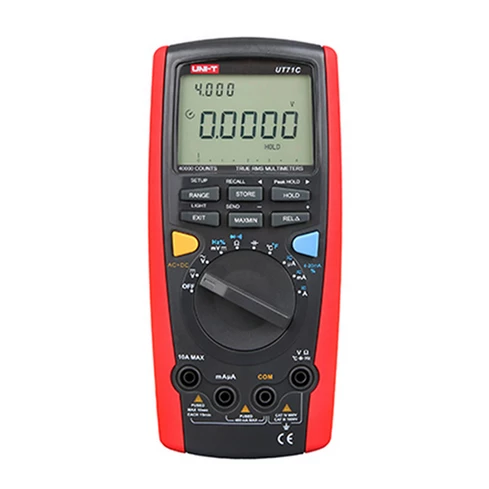

UNI-T UT71C digital multimeter measures AC/DC current and voltage, resistance, capacitance, frequency, temperature (ºC and ºF), duty cycle, and tests diodes and continuity. UT-71C professional multimeter, the built-in memory can hold up to 100 measurements for later recall. This multimeter for electronics measurements can be stored automatically in 0 ~ 255-second intervals. UT 71 C meter, you can transfer the data by using the USB interface the recorded data to the PC for later analysis. The UT71C best multimeter has LCD with 3 indications: primary 40.000 counts, left secondary 4000 counts, right secondary 4000 counts
Features Of UT71C Middle Size Intelligent Digital Multimeter:
- Adjustable data-recording interval
- True RMS, duty cycle, continuity buzzer
- MAX/MIN/REL modes; peak/data hold; analogue bar graph
- 4-20mA loop test
- 45Hz~100kHz frequency response
- LCD backlight; miss plug alarm
- Auto power off, low battery indication
- Data logging
- Auto and manual range selectable
- USB interface, Bluetooth
- Temperature measurement, k-type
- Smartphone APP: DMM
- Works with UT-D07A Bluetooth adaptor
- Download from Apple Store or Google Play Store
Specifications Of UNI-T UT71C Handheld Multimeters Ac Dc Voltage Meter:
- DC Voltage Range: 400mV/4V/40V/400V/1000V
- DC Voltage Accuracy: ±(0.025%+5)
- AC Voltage Range: 4V/40V/400V/1000V
- AC Voltage Accuracy: ±(0.4%+30)
- DC Current Range: 400µA/4000µA/40A/400mA/10A
- DC Current Accuracy: ±(0.08%+8)
- AC Current Range: 400µA/4000µA/40A/400mA/10A
- AC Current Accuracy: ±(0.5%+15)
- Resistance Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- Resistance Accuracy: ±(0.3%+8)
- Capacitance Range: 40nF/400nF/4µF/40µF/400µF/4mF/40mF
- Capacitance Accuracy: ±(1%+20)
- Frequency Range: 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz
- Frequency Accuracy: ±(0.01%+8)
- Temperature, ºC Range: -40~ 1000ºC
- Temperature, ºC Accuracy: ±(1%+30)
- Duty cycle Range: 10%~90%
- Duty cycle Accuracy: ±(1%+30)
- 4~20mA Loop Range: 0~100%
- 4~20mA Loop Accuracy: ±(1%+50)
- Power supply: 9V battery: NEDA 1604, 6F22 or 006P
- Dimensions (H × W × D): 200 × 93 × 40 mm
- Weight, g: 340 (including battery)
Package includes:
- 1 x Multimeter UNI-T UT71C
- 1 x Point contact temperature probe
- 2 x Test leads
- 2 x Alligator clips
- 1 x USB interface cable
- 1 x CD with software
- 1 x Power adaptor
- 1 x Carrying bag
- 1 x User manual
