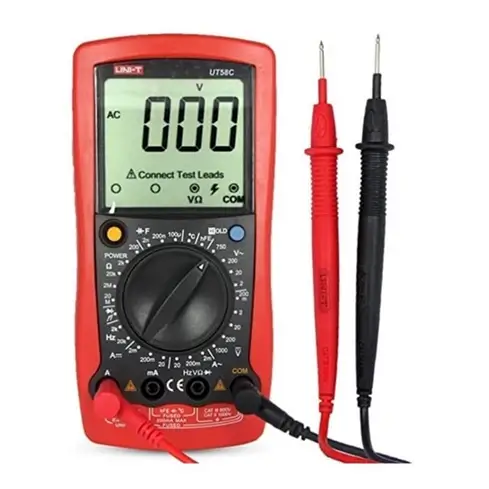

UT58 series is a safe and reliable manual range digital multimeter that is easy to operate. Its large 60mm x 54mm LCD screen conveniently displays measurement results. Palm-size DMM satisfies a variety of applications in both electronics and electrical fields. Portable Digital MultiTester is suitable for measurement of smelting, communication, manufacturing, petroleum, national defense, electric power, chemical industry and other industries Pocket-size Multitester is an ideal tool for the maintenance and repair of the circuit/power equipment.
Features Of Handheld Pocket-size DMM UT58C:
- 2000 display count, refresh rate 2~3 times/s
- Function symbols and test lead connection indication
- Transistor measurement
- Temperature measurement mode, with K-type temperature probe
- Frequency measurement
- Diode and continuity buzzer; auto power off； overload protection
- Data hold; 20A AC/DC current measurement
Specifications Of UNI-T Modern Digital MultiTester UT58C:
- Power: 9VBattery (6F22)
- LCD Size: 60×54mm
- Max. Display: 1999
- Product Color: Red and Grey
- Product size: 179mmx88mmx39mm
- DC Voltage(V):
- Range:200mV/2V/20V/200V/1000V
- Accuracy: ±(0.5%+1)
- AC Voltage(V):
- Range:2V/20V/200V/750V
- Accuracy: ±(0.8%+3)
- DC Current (A):
- Range:20μA/2mA/20mA/200mA/20A
- Accuracy: ±(0.8%+1)
- AC Current (A):
- Range:2mA/200mA/20A
- Accuracy: ±(1%+3)
Resistance(Ω):
- Range:200Ω/2KΩ/20KΩ/2MΩ/20MΩ/200MΩ
- Accuracy:±(0.8%+1)
Capacitance (F):
- Range:2nF/200nF/100Μf
- Accuracy:±(4%+3)
Frequency(Hz):
- Range:2kHz/20kHz
- Accuracy: ±(1.5%+5)
Temperature(°C):
- Range: -40°C~1000°C
- Accuracy: ±(1%+3)
Package Include:
- 1x UNI-T UT58C General Digital multimeter
