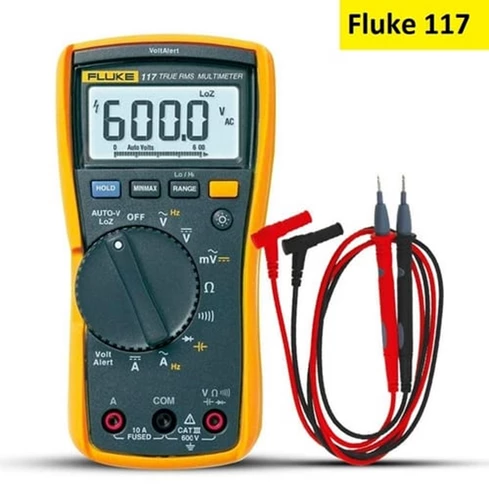

The Fluke 117 Digital Multimeter includes integrated non-contact voltage detection to help get the job done faster. Designed by electricians and engineered by Fluke, the Fluke 117 is a compact True-RMS meter for demanding applications like commercial buildings, hospitals, and schools. With its integrated non-contact voltage detection, Auto Volts, and LoZ functions that help prevent false readings caused by ghost voltage, the Fluke 117 is a great choice for electricians. In fact, users around the world have said their 117 is an investment inaccuracy. The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.
Features:
- VoltAlert built-in noncontact voltage detector. The sensing circuit is located on the top of the meter above the LCD display
- Measures 10 A (20 A overload for 30-seconds)
- Measures resistance, continuity, frequency, and capacitance
- Provides Min/Max/Average to record signal fluctuations
- Comes with an holster with probe holders for easy storage
- Features compact ergonomic design for one-handed operation
- Fits into optional ToolPak magnetic hanger for hands-free operation
- CAT III 600 V safety rated
- A large white LED backlight to improve measurement visibility in poorly lit areas
- VoltAlert technology for fast, go/no go non-contact voltage detection
- AutoVolt and low input impedance modes to provide faster, more accurate readings
Specifications:
- Voltage: 600V
- Surge protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
- Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
- DisplayDigital: 6,000 counts, updates 4 per second
- Bar graph: 33 segments, updates 32 per second
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +60°C
- Battery type: 9-volt Alkaline, NEDA 1604A / IEC 6LR61
- Battery life: 400 hours typical, without backlight
- Weight: 0.550kg
Package Include:
- 1x Fluke 117 meter
- 1x 9 inch hook and loop strap.
- 1x Universal hanger clip.
- 1x Strong magnet attaching clip
