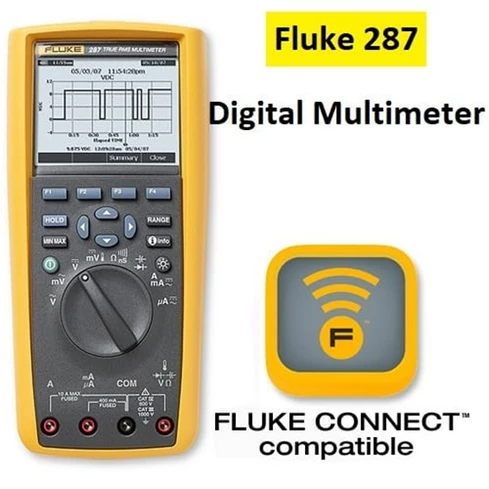

The Fluke 287 is an advanced, logging digital multimeter with high accuracy and Trend Capture electronics professionals can depend on. The Fluke 287 True-RMS Electronics Logging Multimeter with Trend Capture quickly documents design performance and graphically displays what happened. The Fluke-287 DMM has unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.
Features:
- Now compatible with Fluke Connect Mobile App and all Fluke FC-compatible measuring instruments with optional ir3000 FC infrared connector (sold separately).
- Immediately show your team what you see with the ShareLive video call feature (Fluke Connect Mobile App and ir3000 FC wireless connector required).
- TrendCapture provides a graphical representation of a logged data session in order to quickly determine whether deviations have taken place.
- Zooming in on trends offers unprecedented opportunities for viewing and analyzing TrendCapture data; You can zoom in up to 14 times.
- Thanks to the selectable AC filter (smoothing mode), a more stable readout can be displayed when the input signal changes rapidly or contains a lot of noise.
- Adjustable thresholds for registration and auto hold by defining a percentage change for the measurements at the start of a new event.
- Real-time clock for automatic time display of stored measured values.
- True-RMS AC voltage and current for accurate measurements with complex signals or non-linear loads. AC bandwidth specified up to 100 kHz.
- Temperature function.
- Relative mode for eliminating the resistance of the test leads when measuring low-ohmic resistances or capacitance values.
- Peak registration for registering transients with speeds up to 250? S.
- Includes premium test leads and crocodile clips.
- With the optional FlukeView Forms software you can document, save and analyze individual measures or a series of measures, and then convert them into professional-looking documents.
- With the optional magnetic hanging clip you can hang the meter up so that you can easily view it while keeping your hands free for work.
- Limited lifetime warranty.
- Large 1/4 VGA display with up to 50,000 counts, with white background lighting. Multiple sets of measurement information can be displayed simultaneously.
- Log function with extensive memory for independent monitoring of signals during a certain period. With the integrated TrendCapture function you can view a graphical representation of recorded measurements without a PC. Save up to 15,000 registered events.
- Internal auxiliary screens for measurement functions.
- You can save measurements on the spot and give them a name, and recall them later.
- Multilingual interface.
- Multiple log sessions possible without downloading.
- DC basic accuracy of 0.025%.
Specifications:
- Counts: 50000
- Voltage ac/dc: 1000
- Current ac/dc: 10A
- Resistance: 500 MΩ
- Capacitance: 50,000 µF
- Temperature: (+) 1350 °C
- Dimension: 10.25 x 7.75 x 3.5 inches
- Power: 6 AA batteries required
Package Include:
- Fluke 287
- Manual
- 6 x AA Batteries
- Installed TL71 Silicone Test Leads
- Probe Holder
- Two AC72 Alligator Clips
