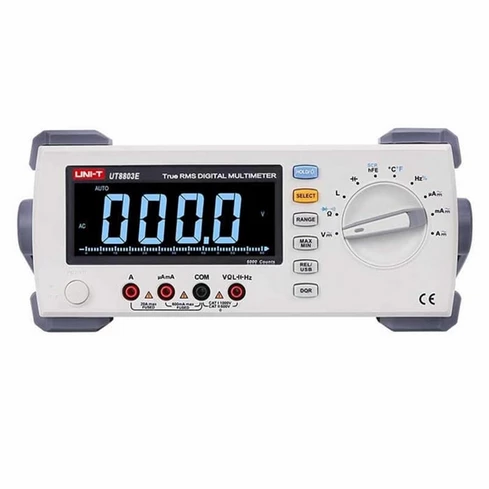

UNI T Bench Top Digital Multimeter UT8803E
UNI T Bench Top Digital Multimeter UT8803E
UNI T Bench Top Digital Multimeter UT8803E
UNI T Bench Top Digital Multimeter UT8803E
UNI T Bench Top Digital Multimeter UT8803E
Multimeters

UNI T Bench Top Digital Multimeter UT8803E

(2 customer reviews)

Condition: New

Availability: In Stock
Advance Payment Only

SKU:TTH_TMD1,Th6,KRT

Rs. 20999 Rs. 24149

Quantity
Add to cart

UNI-T UT8803E Benchtop Digital Multimeter for AC/DC current and voltage, resistance, capacitance, frequency, duty cycle, inductance. This UT 8803E digital multimeter measures temperature measurements and diode, transistor and continuity tests, SCR thyristor test. Having a large EBTN LCD display and a USB interface. UNI T best benchtop multimeter features overload protection for all ranges and special appearance design. It is an ideal tool for electricians, production QA, maintenance, research, and education.

Features Of UNI-T UT8803E Benchtop Digital Multimeter:

  • True RMS (UT8803E)
  • Diode/transistor
  • SCR thyristor test (UT8803E)
  • Inductance measurement
  • USB interface
  • EBTN LCD screen
  • Data hold
  • MAX/MIN
  • Continuity buzzer

Specifications Of Digital Multimeter UT-8803E Benchtop Style:

  1. Model: UT8803E
  2. DC voltage (V): 1000V
  3. AC voltage (V): 750V
  4. DC current (A): 20A
  5. AC current (A): 20A
  6. Resistance (Ω): 60MΩ
  7. Capacitance (F): 6mF
  8. Frequency (Hz): 600Hz~20MHz
  9. Duty cycle (%): 5%~95%
  10. Inductance (H): 100H
  11. Temperature (°C/°F): -40℃~1000℃, -40℉~1832℉
  12. Display count: 6000
  13. Interface: USB Device
  14. Range: Auto
  15. True RMS/diode: √
  16. Frequency response (Hz): Up to 100kHz
  17. SCR test: 9V, can measure unidirectional and bidirectional SCR (UT8803E)
  18. Continuity buzzer/data hold: √
  19. MAX/MIN √
  20. USB interface/LCD backlight: √
  21. Input impedance for DCV: 600mV range: around 3GΩ; all other ranges: around 10MΩ
  22. AC+DC measurement: √
  23. Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
  24. Display: EBTN LCD
  25. Product net weight: 3.09kg
  26. Product size: 265mm x 110mm x 320mm

Package Includes:

1 x

  • USB interface
  • cable
  • 1 x Power cord
  • 1 x Simple test lead with alligator clips
  • 1 x Standard test leads
  • 1 x PC software CD
  • 1 x Point contact temperature probe (UT8803E)

Best Online Shopping website for UNI T Benchtop Digital Multimeter UT8803E Best Bench Multimeter in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
