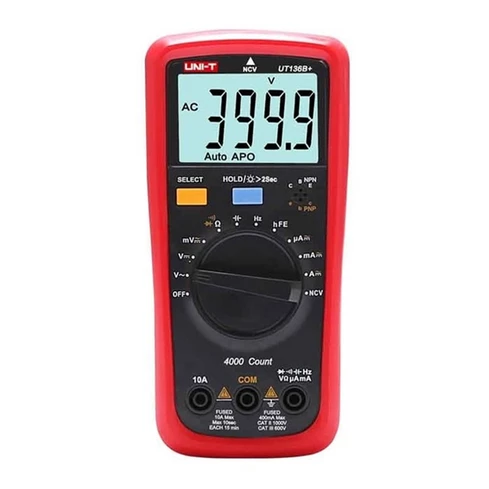

UNI-T UT136B+ digital multimeter is safe and reliable with an innovative design that ensures the product's shock resistance (drop from 2 meters height). This portable multimeter UT136B+ is equipped with a large LCD screen that provides a clear display. UT136B+ best multimeter for electronics is suitable for civil and commercial use. This electronic multimeter provides low power consumption and auto power-saving function with long battery service life (>500hrs), quick response rate Large LCD dual display up to 4 times/s refresh rate
Features Of UNI-T UT136B+ Auto Range Digital Multimeter:
- UT136B+ Measures up to 1000V and 10A AC/DC voltage and current.
- UT136B+ Equipped with 3mm protective sleeve; 2 meters drop proof.
- Large LCD dual display; up to 4 times/s refresh rate.
- Full range protection: can endure up to 1kV over-voltage shock; overload alarm.
- Quick response rate.
- Low power consumption and auto power-saving function; long battery service life (>500hrs).
Specifications Of AC DC Volt Current Resistance Capacitance Frequency Diode Tester UT136B+:
- DC voltage (V): 400mV/4V/40V/400V/1000V ±(0.5%+2)
- AC voltage (V): 400mV/4V/40V/400V/1000V ±(0.7%+3)
- DC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.0%+3)
- AC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.5%+5)
- Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8%+2)
- Capacitance (F): 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±10%
- Frequency: 400Hz ~ 40MHz ±(0.1%+4)
- Max display: 3999
- Auto range: Yes
- NCV: Yes
- Diode/Transistor: Yes
- Backlight: Yes
- Overload alarm: Yes
- Low battery indication: Yes
- Auto power off: Yes
- LCD size: 60mm x 38mm
- Protective sleeve: 3.0mm
- Safety rating: CAT II 1000V
- Product size: 175mm x 83mm x 50mm
- Product net weight: 330g
Package Include:
- 1 x UNI-T UT136B+ Digital Multimeter
- 2 x Probes
- 1 x English User manual
