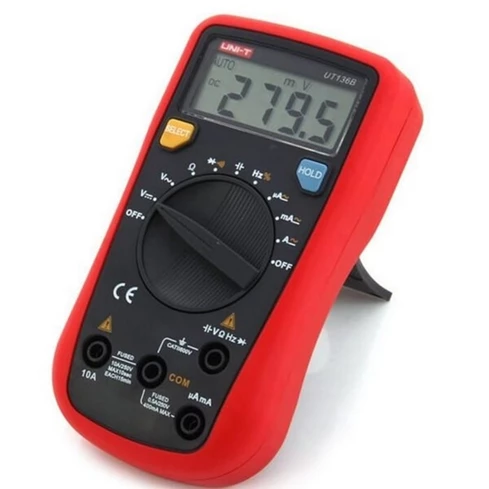

UNI T Digital Multimeter UT136B measures or tests DC and AC voltage, DC and AC current, resistance, capacity, diodes and in-circuit continuity (buzzer) test. This UT-136B handy digital multimeter is kind of basic function/low-cost multimeter not with high accuracy. UT 136 B mini handheld multimeter is auto power-off; low battery display; diode test; continue buzzer. This small multimeter is fit for schools, factories, families, and amateur wireless lovers. UT 136 B meter is high sensitivity AC / DC voltage DC current measurement tool.
Features Of UNI-T UT136B AC DC Frequency Resistance Tester:
- Auto Power Off; Low Battery Display; Diode Test; Continue Buzzer
- Auto Data Hold; Max. Display: 3999
- Tilt stand design, three observation angles is in favour of reading the display
- High sensitivity AC / DC voltage DC current measurement
- Fit for schools, factories, families, and amateur wireless
- Small and compact design
- It is made of superior material, durable and practical
Specifications Of UNI-T UT136B Auto Range Digital Multimeter:
- mA range: F1 fuse 5x20mm, F 0.5A H 250V
- 10A range: F2 fuse 5x20mm, F 10A H 250V
- DC voltage: 400mV/4V/40V/400V/500V;±(0.8%+1)
- AC voltage: 400mV/4V/40V/400V/500V; ±(1.2%+3)
- DC current: 400uA/4mA/40mA/400mA/4A/10A ; ±(1.0%+2)
- AC Current: 400uA/4mA/40mA/400mA/4A/10A ; ±(1.2%+5)
- Resistance: 400ohm/4000ohm/40kohm/400kohm/4Mohm/40Mohm ; ±(1.0%+2)
- Capacitance: 4nF/40nF/400nF/4uF/40uF/100uF ; ±(4.0%+3)
- Frequency: 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ; ±(0.5%+3)
- Duty cycle: 0.1% ~ 99.9%
- Frequency: 40Hz ~ 400Hz. Display effective value of sine wave(average value) each measurement is applicable from 5% of range as reference.
- Power: 9V Battery
- Product Color: Red and Iron Grey
- The max display: 3999
- Work Environment: 0℃-40℃
- Storage Environment: -10℃-50℃
- Function: DCV,ACV,DCA,ACA ,Diode
- Product Dimensions: (13.5 x 6.5 x 3.5)cm / (5.31 x 2.56 x 1.38)"(L x W x H)
- Product Net weight: 315g / 11.11oz
Package Includes:
- 1 x UNI-T UT136B Digital Multimeter
- 1 x Test Lead
- 1 x English User Manual
