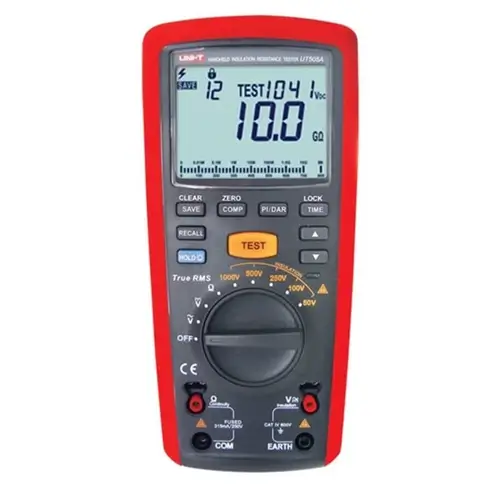

UNI T Handheld Insulation Resistance Meter UT505A

UNI-T UT505A multimeter is handheld true RMS insulation resistance tester combines features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, this insulation test meter can also measure insulation resistance, PI, DAR, and automatically calculate the resistance ratio to determine the insulation status. UT-505A digital insulation tester megger can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulating materials. UT505A digital megger tester is now also available in Pakistan.

Features Of Multimeter UNI-T UT505A Insulation Resistance Tester:

• Measure the insulation resistance of electrical equipment up to 20.0GΩ.
• Special low resistance measurement mode.
• Zeroing button.
• Large-size screen with bargraph.
• AC/DC voltage measurements to 600V.
• DAR and polarisation index function.
• Comparison function.
• Data storage function.
• Automatic power off when left idle.

Specifications Of UNI-T UT505A Digital Handheld True RMS Megger Ohm Voltmeter Megohmmeter:

1. Testing voltage: 50V / 100V / 250V / 500V / 1000V
2. 50V 0.1MΩ ~ 50.0MΩ ± (3%+5)
3. 100V 0.1MΩ ~ 100.0MΩ ± (3%+5)
4. 250V 0.01MΩ ~ 200.0MΩ ± (1.5%+5)
5. 500V 0.01MΩ~500MΩ ± (1.5%+5)
6. 1000V 0.1MΩ ~ 2000MΩ ± (1.5%+5)
7. 1000V 2GΩ ~ 9.9GΩ ± (10%+5)
8. 1000V 10GΩ ~ 20.0GΩ ± (20%+5)
9. Load current: 1mA (50V@50kΩ, 100V@100kΩ, 250V@250kΩ, 500V@500kΩ, 1000V@1MΩ)
10. Short circuit current: <2mA
11. Low resistance: 0.01Ω ~ 20.00kΩ ± (1.5%+3) about 5.0V/>200mA
12. DC voltage: 0-600V ± (2%+3)
13. AC voltage: 0-600V (45Hz~1kHz) ± (2%+3)
14. Step voltage: 10% steps at 50% ~ 120% of range
15. Dielectric absorption index (DAR): 60s/15s and 60s/30s
16. Polarization Index(PI): Yes
17. Measurement comparison: Yes
18. Timer: Yes
19. High voltage indication: Yes
20. Automatic range switching: Yes
21. True RMS: Yes
22. Auto range switching: Yes
23. Continuity buzzer: Yes
24. Low battery indication: Yes
25. Data hold: Yes
26. Data logging: 99 values
27. Display backlight: Yes
28. Power: 6x1,5V alkaline battery LR6
29. Display size: 78x59mm
30. Weight: 630g
31. Size: 103x225x59 mm

Package Includes:

• 1 x UNI-T UT505A Insulation Tester
• 2 x Test Leads
• 2 x Alligator Clips
• 2 x Test Probes
• 1 x User Manual
• 1 x Carrying Case
