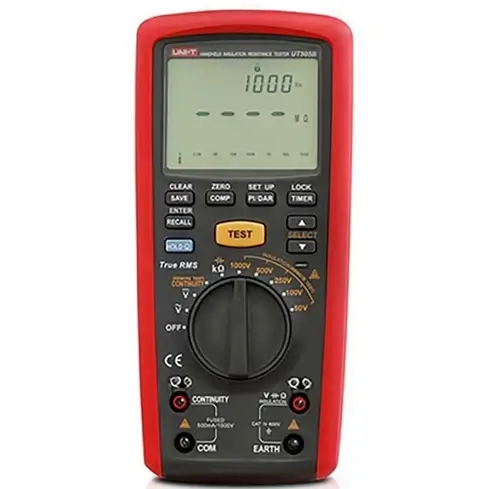

UNI T Handheld Insulation Resistance Tester UT505B

UNI T Insulation Resistance Tester UT505B handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. UT-505B true RMS insulation resistance meter, this meter can also measure insulation resistance, PI, DAR, and automatically calculate the resistance ratio to determine the insulation status. This megger insulation tester can be used in insulation resistance testing of precision tools, including motors, cables, transformers, switches, electrical appliances, and insulating materials. UNI-T UT505B digital insulation tester is now available in Pakistan.

Features Of UNI-T UT-505B True RMS Insulation Resistance Multimeter:

• Show the actual value of insulation voltage 50V/100V/250V/500V/1000V.
• Insulation resistance can be tested to 200GΩ.
• Measured absorptance / polarization index ,low –resistance test (100Ω).
• Step voltage regulation, the function of remote detection test lead and comparison.
• 600V AC/DC voltage,99 data logging.
• Frequency(Hz) and Capacitance(F) test.
• Safety level: CAT III 1000V CAT IV 600V.
• Brand-new designed, portable and easy to control.

Specifications Of UNI-T UT505B Handheld Insulation Resistance Tester Megohmmeter:

1. Voltage Output: 50V / 100V / 250V / 500V / 1000V
2. Insulation Resistance:
3. 50V: 0.00MΩ-0.99GΩ / 1.00GΩ~10.0GΩ
4. 100V: 0.00MΩ-0.99GΩ / 1.00GΩ~20.0GΩ
5. 250V: 0.00MΩ-0.99GΩ / 1.00GΩ~50GΩ
6. 500V: 0.00MΩ-0.99GΩ / 1.00GΩ~100GΩ
7. 1000V: 0.00MΩ-0.99GΩ / 1.00GΩ~200GΩ
8. Voltage Measurement: 0~600V(AC) 0~600V(DC)
9. Resistance: 0.001kΩ~10MΩ
10. Frequency Measurement: 45Hz~1kHz
11. Capacitance: 0.1nF~500μF
12. Display Count: 6000
13. Auto Range: Yes
14. True RMS: Yes
15. Step Voltage: 10% Steps at 50% ~ 120% of range
16. DAR: 60s/15s and 60s/30s
17. PI: Yes
18. Timer: Yes
19. Fuse Self Test: Yes
20. High Voltage Indication: Yes
21. Auto Discharge: Yes
22. Analogue Bar Graph: Yes
23. Auto Power Off: Yes
24. Continuity Buzzer: Yes
25. Data Hold: Yes
26. Data Storage: 99
27. Measurement Comparison: Yes
28. LCD Backlight: Yes
29. Low Battery Indication: Yes
30. Power Supply: 6 * 1.5V AA Battery (not included)
31. Item Size: 22 * 10 * 4.5cm / 8.6 * 3.9 * 1.8in
32. Item Weight: 507g / 17.9oz
33. Package Size: 30 * 17.5 * 6.5cm / 11.8 * 6.9 * 2.6in
34. Package Weight: 984g / 34.7oz

Package Includes:

• 1 x Handheld Insulation Resistance Tester UNI-T UT505B
• 2 x Test Probes
• 2 x Alligator Clips
• 2 x Test Leads
• 1 x User Manual
• 1 x Carrying Case
